2K Two-Component Systems

450 Series Autovalve

The Series 450 meter mix autovalve features shut-off pistons, which provide precise control of dot or shot volume. Adjust its seals without disassembly of the valve body for added convenience

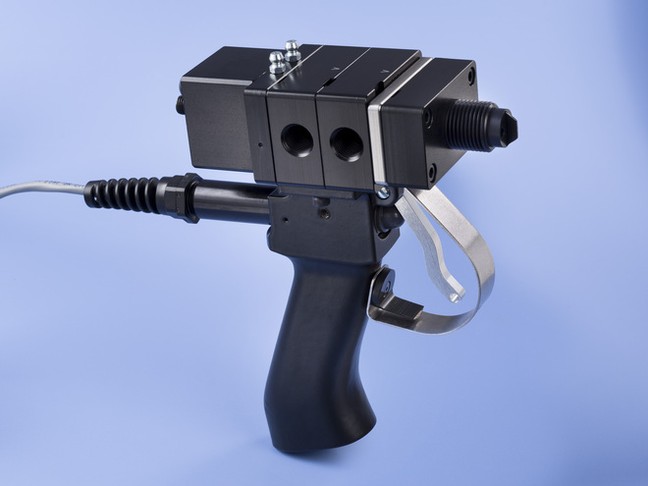

Nordson-EFD-Series-450-Autovalve

Overview

The autovalve's dual pistons retract and "snuff back" material from the end of the mixing nozzle, eliminating drool after each shot. Use this durable, reliable pneumatic autovalve as a stationary head or hand-held unit. The valve includes both hard-coated and lubricated pistons.

Valve, manifold, and handle must be ordered for complete assembly. For high back pressure conditions over 1,000 psi (69 bar), order a double air cylinder.

Other Available Options

Series 450RC Recirculating Valve

Also available, the 450RC allows continuous flow of material while still being able to control shut-off at the mixer. Typically used for heated materials or materials with filler that must remain suspended, gear pump applications also benefit because pumps can be kept running while material is shut off at the mixer.

Recirculation occurring at the valve instead of the pump eliminates pressure buildup in the lines, preventing off-ratio dispensing. The valve also incorporates a snuff-back feature that minimizes or eliminates the possibility of material dripping or stringing when the valve shuts off.

Series 450 XT Snuff Back Valve

In response to consumer demand, Nordson EFD also offers an innovative dispense valve specifically for moisture sensitive, two-component urethanes. Any contact with air can cure two-component urethanes, locking up the dispense valve. The 450 XT’s production-proven design eliminates air exposure of wetted shafts.

Two-Component (2K) Products

1

Accurately Mix and Dispense

Nordson EFD leads the way with industrial mixing systems that are uniquely designed to accurately mix and dispense two-part adhesives and sealants while eliminating entrapped air.

Our 2K industrial mixing systems, products, and mixer accessories are manufactured in the USA in facilities that are ISO 9001:2000 certified.

Find the Perfect 2K Mixer

Nordson EFD’s high-quality mixers ensure optimal performance of two-component materials by dividing and recombining the materials evenly into a homogeneous stream.

2

DATA SHEET

pdf(1)

Meter Mix Valves
