Overview

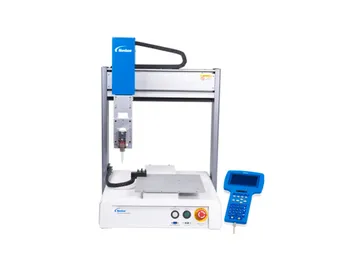

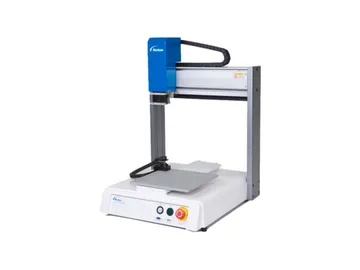

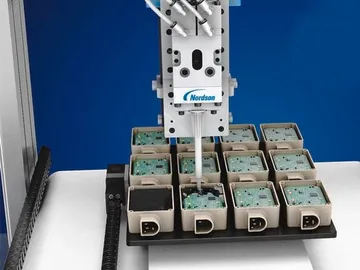

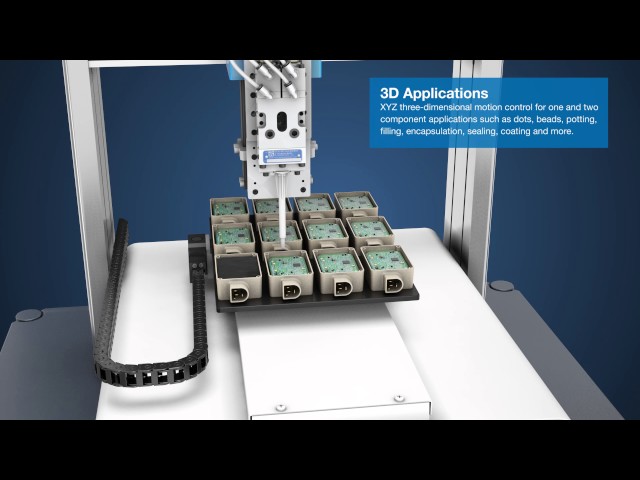

The Valve Series XYZ Tabletop Robot is a automated dispensing system that brings repeatability and precision to desktop applications, suitable for floor mounted meter installations. For a higher capacity payload version please view the Nordson Meter Series XYZ Tabletop Robot, that features a gantry mounted meter to enable greater shot accuracy with wide and difficult ratio materials.

Features and Benefits

By integrating automated dispensing, manufacturers experience faster cycle and batch times and reduced production and material costs.

Nordson's Valve Series automated dispensing system features a simple-to-use Teach Pendant for quick setup and easy programming.

• Affordable – Tabletop automated dispense system to simplify the steps needed to upgrade your process
• Accurate – Precision motion control results in repeatable production quality
• Durable – Robust construction provides movement stability at high speeds
• Low Maintenance – Easy to use controls reduce set up time between production runs

Technical Data

Physical Size

Maximum Working Area : 16" / 16" / 4" (400 / 400 / 100 mm)

Dimensions (H/W/D) : 32.5" / 23.2" / 25" (825 / 590 / 635 mm)

Number of Axes : 3

Drive System : 3-phase micro-stepping motor

Weight : 98 lbs (44.5 kg)

Capability

Maximum Valve : 15 lbs (6.8 kg)

Maximum Part Payload : 21 lbs (10 kg)

Maximum Speed (XY/Z) : 31 / 13 in/s (800 / 320 mm/s)

Repeatability : +/- 0.008 mm/axis

Controls and Interface

I/O 8 inputs/8 outputs

Memory Capacity 1-99 programs

Data Storage USB

Drive Method PTP and CP

Powder Supply Auto-Switching, AC100-24DV, 320W

Teach Pendant Included

DATA SHEET
