Radial Spinner Valve System
Nordson EFD radial spinner valve system provides an efficient, cost-effective way to apply production fluids inside cylindrical parts between 10.2 mm (0.4”) and 127 mm (5”) in diameter.
Overview
The system's compact size and precision makes it ideal for processes where fluid must be applied inside small cylinders or confined to specific locations without overspray. Its inert wetted parts make it compatible with a wide range of reactive fluids such as cyanoacrylates and anaerobic adhesives.
Our radial spinner valve system combines a compact air-driven motor with an EFD dispense valve and ValveMate™ controller.
The valve dispenses a precisely metered amount of fluid onto a spinning disk attached to the motor. As fluid reaches the edge of the disk it spins off, forming a neat band inside the part. The valve system’s low maintenance design also improves product performance and appearance while reducing downtime.
Valve Systems & Controllers
Engineered for the most demanding manufacturing environments

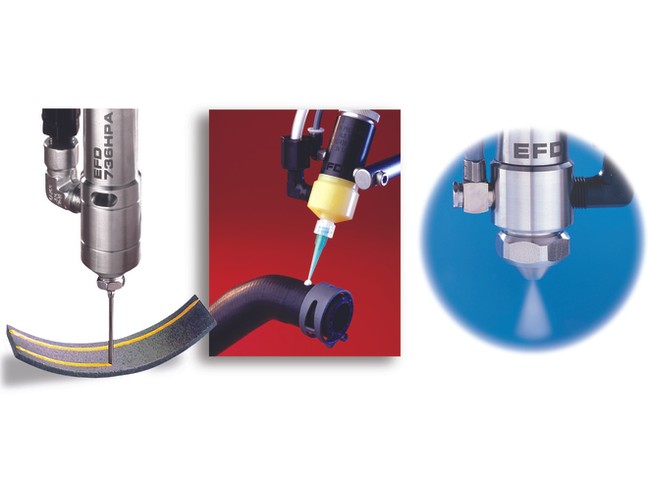

Nordson EFD valve systems are proven to provide precise, reliable fluid dispensing control for tens of millions of trouble-free cycles before maintenance is required.
The Complete Valve System
The complete system includes a precision dispense valve, air motor, bracket, valve/motor controller, disc assembly, and dispense tip. Disks and tips are available in different sizes to meet a wide variety of applications.
DATA SHEET
z-z389163168819.png)
Radial Spinner Valve System
