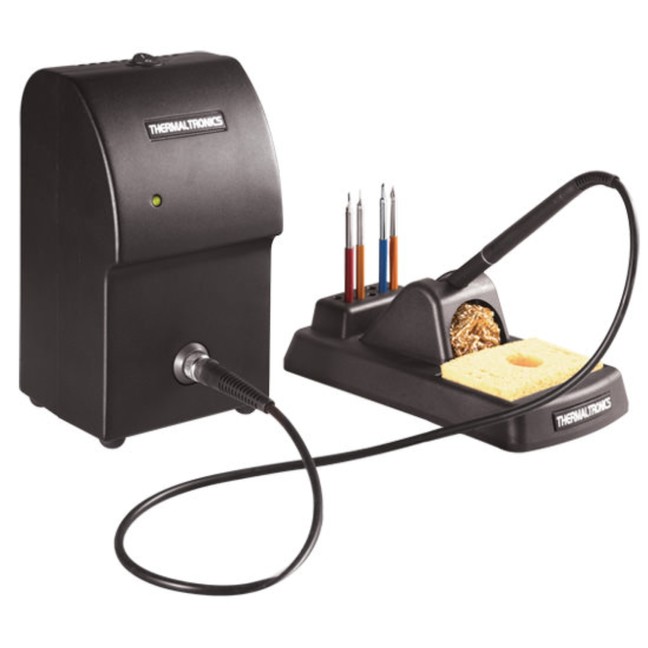

The TMT-5000S is based on Curie Heat Technology which responds to the thermal demands of each solder joint by adjusting the power instantaneously, thereby meeting the exact requirements of the substrate component and solder material.
- Curie Heat Technology operating at 13.56MHz.
- Features our unique T Series line of tip cartridges.
- Lightweight and compact, takes up minimal table space.
- No calibration or operator training required.
- No additional coil assembly costs.
SPECIFICATIONS
Input Line Voltage - Tip to Ground Potential Tip to Ground Resistance Idle Temperature Stability Ambient Operating Temperature Maximum Enclosure Temperature Fuse - Output Power (Maximum) Output Frequency Size (W x H x D) Weight | TMT-5000PS-1 100-110 VAC TMT-5000PS-2 220-240 VAC 2mV,true RMS 50-500Hz <2 Ohms DC +/- 1.1°C (2°F) 10-40°C (50°F -104°F) 50°C (122°F) TMT-5000PS-1 125V 1A TMT-5000PS-2 250V 0.5A 30 Watts RF 13.56 MHz 112mm x 205mm x 117mm 2.58 KG |
CERTIFICATION MARKS
PACKING LIST
| TMT-5000PS | Power Supply |
| SHH-2 | Soldering Handpiece Holder |
| SHP-T | Soldering Handpiece |
| RMP-1 | Tip Removal Pad |
| SG-1-BK | Handpiece Grip Black |
| SG-1-GR | Handpiece Grip Green |
| CC-1 | Connection Cable |
| BC-1 | Brass Curls |
| SPG-1 | Sulphide Free Sponge |

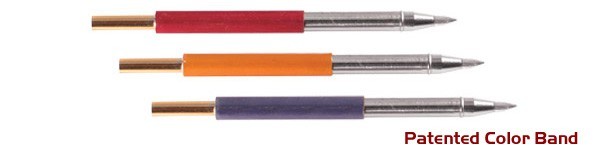

T SERIES - TIP CARTRIDGES
