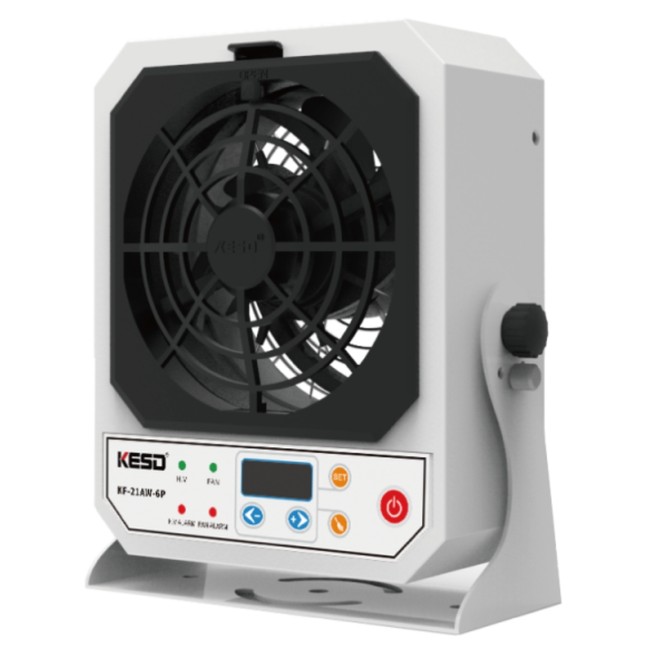

Self Cleaning Ionizing Air Blower Kesd KF-21AW-6P Portable
1. Auto-cleaning discharge needle, reduce maintenance frequency.
2. Wireless network monitoring function.
3. The clean time can be adjusted from 0-999 hours.
4. Automatic ion balance system, ion balance 0 ± 10V.
5. Locking function for the whole machine.
6. Abnormal alarm system.
Technical Parameters
| Category | Parameters | Category | Parameters |
| Input | DC24V | Air Volume | 2.44-5.1m3/min |
| Ion balance | 0-+10V | Ozone Concentration | Below 0.004ppm(distance 50mm) |
| Clean timer set | 0-999 hours | Environment Temperature | 0-40 degree |
| Static Voltage | High Frequency AC method /_+2200v | Temperature Humidity | 15-70%RH (no water drop condensation) |
| Weight | 1.5kg (including bracket) |
Anti-static test condition
| Anti-static test condition | |||
| Working voltage : DC 24V Test voltge : ± 1000v - ± 100V Evironment temperature: 23°C ± 2℃ | |||
| Distance | Decay time(Postive /positive ) | Ion balance | Notes: 1: Test meters : TREK156A 2：Test volume : maximum air and without filter 3: Test in the central area of the front air window |
| 300mm | 1.0s/1.5s | 0±10v | |
| 600mm | 2.0s/3.0s | 0±15v | |
| 900mm | 3.5s/4.5s | 0±20v | |
01 Front window
Use a linear grid type air window to concentrate the blow wind and enhance the static elimination effect, and can be flexibly disassembled for easy maintenance.
02 Discharge needle
Discharge needle parts can be disassembled for replacement and maintenance.
Cleaning or maintenance outside the working area to avoid secondary pollution.
03 Shell
04 Rear label
05 Rear wind windshield
06 Operation panel and function buttons
Power switch button
1) After turning on the power, press the power switch button to start the machine.
2) In normal operation, there is memory function after power off, and it is not necessary to press the power switch button
