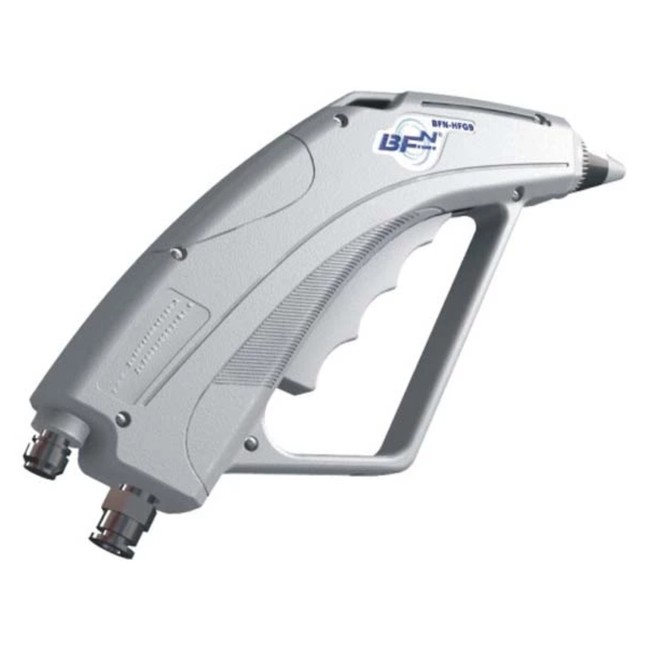

The Model BFN-HFG9 Ionizing Air Gun is a hand-held and high-performance ionizing air gun designed for a wide variety of electronic manufacturing, medical and assembly applications, mainly used to eliminating dust and neutralizing static. The Ionizing Air Gun features easy-to-use, convenient maintenance, safe use, etc.

Features

• Fashion and novel appearance
• With the humanization design, ionizing air gun is convenient maintenance, so can improve working efficiency
  With a built-in piezoelectric transformer and no exposed high voltage wire, the ionizing air gun is safe for using
• High efficiency static elimination, excellent Ionic Balance, failure warning function
• Using air plug to linking the power, ensuring safety for operators
• Circumscribing a reliable HEPA Filter for purifying the environment

Specifications

• Ion-generating Mode: Corona Discharge Model
• Ion Output Voltage: 2.2KV
• Ion Balance Control Mode: Self-Poise
• Static Decay Time: ≤1.0S
• Ion Balance Voltage: ≤±15V
• Power Supply: DC24V/500mA output （power input AC220/50HZ or AC110/60HZ）
• Pressure of Air: ≤0.6MPA
• Operating Distance: 100mm~800mm
• Ozone Concentration: ≤0.002ppm
• Windpipe Connector Spec: Diameter ф6 mm
• Environment Temperature: 0℃~50℃
• Environment Humidity: 20%~80%RH (without frost)
• Cable Length: 2m
• Weight of Ionizing Blower: 250g±5g(Gun body)
• Material: ABS Fireproofing
• Color: Light grey
• Dimensions: (Weight*Height*Depth) 127mm×198mm×28mm
