Digital Gauge Fluid Reservoirs
Our Precision Regulator/Digital Gauge tank reservoirs offer exceptional full-to-empty fluid pressure control. They feature a precision regulator that holds output pressure consistently, regardless of input pressure fluctuations.
Overview
Watery or low-viscosity fluids require the 0-10 psi (0-7) bar constant-bleed air regulator, while thicker or high-viscosity fluids require the 0-100 psi (0-7 bar) regulator. Other features include tighter setting tolerances, faster response, and the ability to reset to the exact pressure settings for increased repeatability. This results in more precise fluid pressure regulation and better process control. Each tank comes with all necessary fittings and feed tubing. See other fluid reservoir products from Nordson EFD below. Available Options 1.0 liter (0.3 gallon) 5.0 liter (1 gallon)
Analog Gauge Fluid Reservoirs
Nordson EFD analog gauge tank reservoirs not only maintain steady fluid pressure, but also prevent fluid contamination and evaporation, and contain fumes.
Overview
Tanks are available with 0-15 psi (0-1 bar) or 0-100 (0-7 bar) constant-bleed air regulators to handle different fluid viscosities. Select the 0-15 psi (0-1 bar) regulator for low-viscosity fluids and the 0-100 (0-7 bar) regulator for high-viscosity fluids. Available Options Since tanks are charged by plant air, we recommend the 5-micron filter/regulator to filter contaminants. Each fluid tank comes complete with air regulator and gauge, air hose with shutoff valve, liner, and fluid feed tubing. 615 Series 1.0 liter (0.3 gallon) accommodates one pound/one liter bottles and is recommended for pourable fluids only. 626 Series 5.0 liter (1 gallon) accommodates fluid poured into the liner. Or the fluid container may be put into the reservoir for direct dispensing.

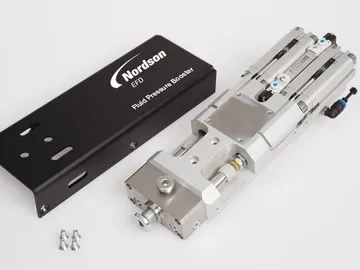

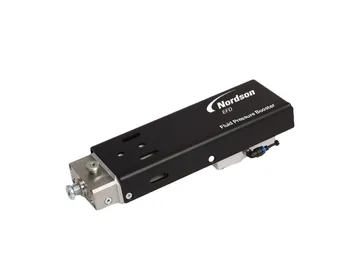

Fluid Pressure Booster
Nordson EFD Fluid Pressure Booster is designed to help move thick materials from a tank or cartridge to an EFD precision valve by boosting dispense pressure up to 100 bar.
Overview
The Fluid Pressure Booster increases the pressure applied to dispensed materials, facilitating the supply of high-viscosity greases, adhesives, and silicones. Its modular design allows quick and easy cleaning of all fluid carrying components, making it particularly suitable for the supply of adhesives and reactive materials.

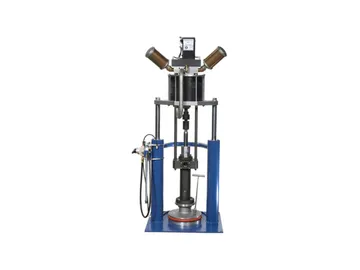

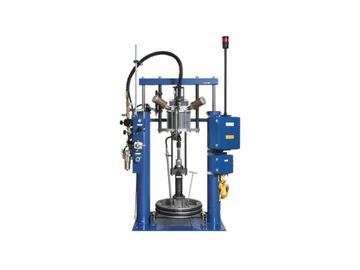

Rhino Bulk Unloader
The Rhino Bulk Unloader provides superior flow properties and ease-of-operation in dispensing high-viscosity adhesives and sealant materials
Overview
The Rhino bulk unloader is designed for demanding manufacturing environments with durable components with a high-tech wear resistant coating to provide maximum operating time. The modular design brings flexibility to accommodate changes in application requirements. Air motors, pumps, and follower plates are interchangeable for easy system configuration. Bulk unloader designed to dispense high-viscosity, ambient temperature adhesives and sealants for a variety of applications Designed for long life and easy maintenance with large internal passageways, few internal parts, and quick-change packing cartridges Options include casters, pail hold-downs, PTFE seals, light towers, and filter packages
