AIRZERO

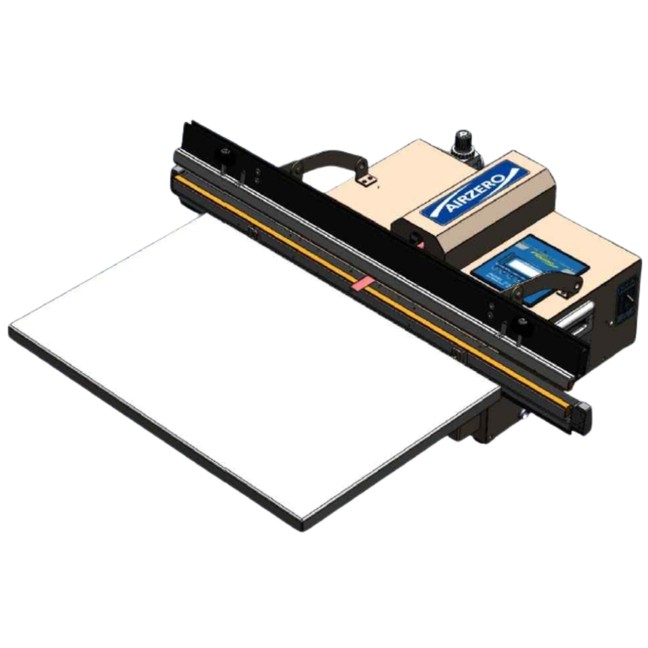

AZ-800E (Desktop type model) Nozzle Type Vacuum & Gas Flushing Sealer

456

Additional Function

Double Heat Wire / Nozzle Air Cleaner (For liquid or Powder) Bulk Liquid Filter / Bulk Powder Filter / Long nozzle (For Convenient works)

Heat Wire

In case of the packing bag's thickness is more than 120 microns, We recommend additional Double Heat wire option.

Technical Specifications

Body MaterialStainless Steel
WeightApproximate 40 kg
Sealing Length800mm
Sealing Width5mm / 10mm (optional / 110v must be use 5mm)
Electricity1Ph / 220V / 60HZ (Also available other Voltage and Frequency)
Required Air Pressure5-7kgf/cm2
Vacuum PumpEjector Pump (pneumatic / Also available oil or oil-less pump)
Maximum degree of vacuumAverage 80-85 kPa
Process Setting

The control unit memorizes various combinations of vacuum, gas flush & seal among MODE 1-8,
besides S mode for only seal and V mode for only seal and V mode for only vacuum & seal.

1. Sealing

2. Vacuum Sealing
3. Gas flushing Sealing (Additional Gas Option gains the processes as below)

4. Vacuum Gas flushing Sealing

5. Gas flushing Vacuum Sealing

6. Vacuum Gas flushing Vacuum Sealing

7. Gas flushing Vacuum Gas flushing Sealing

8. Vacuum Gas flushing Vacuum Gas Flushing Sealing
