Details
- Product Name : SMS01 Series
- Material : PET
- Adhesive : Acrylic

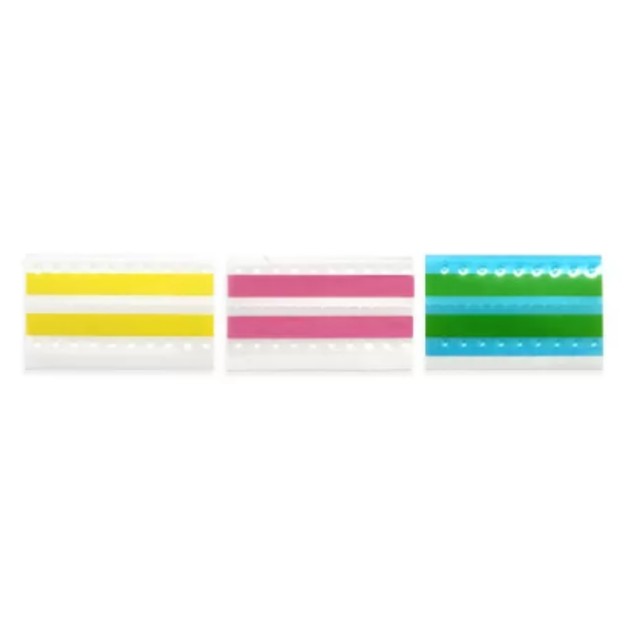

- All Colors : yellow,light yellow,blue,matt-black(ESD),bright-black(ESD),green(ESD)
Description
Universal 01 series SMT double splice tape with double embossed dots designed apply for all sizes (8/12mm/16mm/24mm/32/44/56/72/88mm) of carrier tape
01 series double splice tape is used for jointing carrier tapes in the SMT process. It is made of 2 tapes,release paper and PET material with superior adhesion.
Features And Benefits
1.Double embossed dots designed, one piece for one jointing.
2.Easy operation, no need to use auxiliary tools.
3.Available for all SMT machines except sensitive machine.
Application
Used for jointing carrier tapes in the SMT process and Solving the connection problem of the carrier tape.
| P/N | Description of Goods | Quantity | Application |
| SMS-0108N | SMT Super Double Splice Tape 8mm | 500pcs/box | For 8mm carrier tape |
| SMS-0108 | SMT Double Splice Tape 8mm | 500pcs/box | For 8mm carrier tape |
| SMS-0112 | SMT Double Splice Tape 12mm | 500pcs/box | For 12mm carrier tape |
| SMS-0116 | SMT Double Splice Tape 16mm | 500pcs/box | For 16mm carrier tape |
SMS0108N+
Packing 500pcs/box
SMS0108LX
Packing 500pcs/box
SMS0108M
Packing 500pcs/box
SMS0108C
Packing 500pcs/box
SMS0116C
Packing 500pcs/box

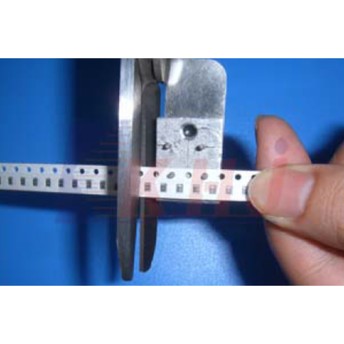

Step 1Put carrier tape into placement pin of cutter and cut the tape.

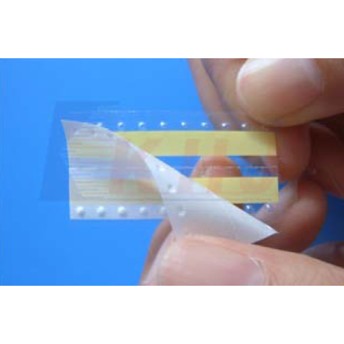

Step 2Peel of the paper liner.

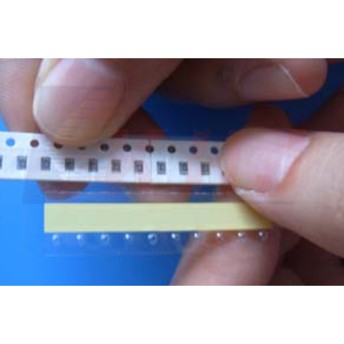

Step 3The raised dots of the clear plastic carrier engage with the sprocket holes.
Step 4Stick another pre-cut reel.
Step 5Fold splice tape over connected tape.
Step 6Peel off the plastic liner.

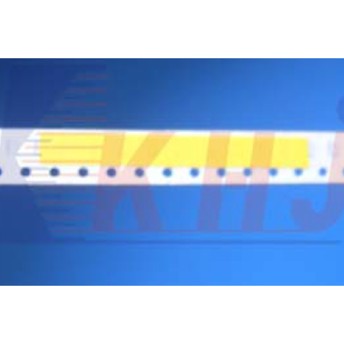

Demo : Upside of connected tape.

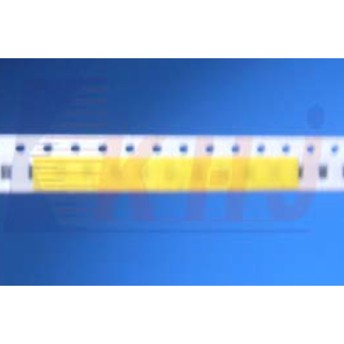

Demo : Downside of connected tape.
