Thermaltronics Soldering

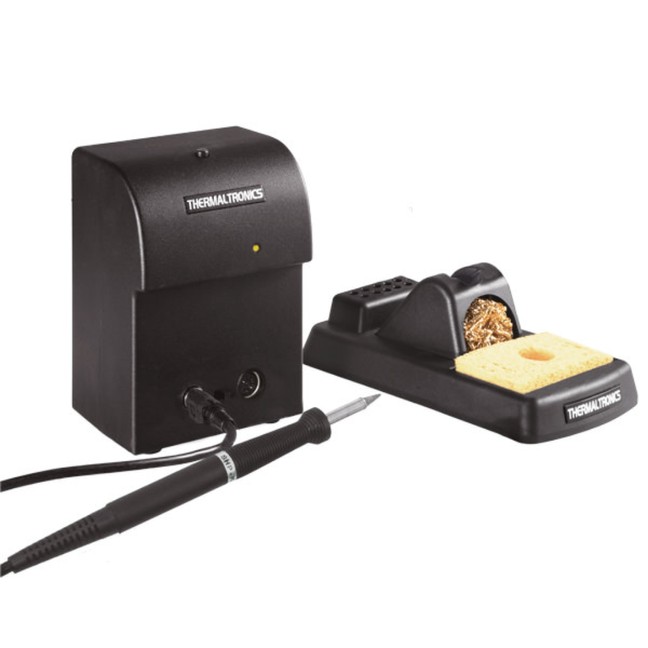

TMT-2000S
Soldering Station

3

The TMT-2000S is based on Curie Heat Technology which responds to the thermal demands of each solder joint by adjusting the power instantaneously, thereby meeting the exact requirements of the substrate component and solder material.

  • Curie Heat Technology operating at 470KHz.
  • Maximum flexibility, allows the use of K, P and S Series tips.
  • Extremely compact, weighs just 1.3KG.
  • No calibration or operator training required.
  • No additional coil assembly costs.

SPECIFICATIONS

Input Line Voltage

Tip to Ground Potential

Tip to Ground Resistance

Idle Temperature Stability

Maximum Enclosure Temperature

Fuse

Output Power (Maximum)

Output Frequency

Size (W x H x D)

Weight
Input Line Frequency

100-240 VAC, 55W

2mV,true RMS 50-500Hz

<2 Ohms DC

+/- 1.1°C (2°F)

50°C (122°F)

250V 1A

50 Watts RF

470 Khz

110mm x 155mm x 92mm

1.3 KG
50/60 Hz


CERTIFICATION MARKS

messageImage1679976079366

PACKING LIST

TMT-2000PSPower Supply
SHH-4Soldering Handpiece Holder
SHP-K1Soldering Handpiece for
K Series Tips
RMP-1Tip Removal Pad
CC-1Connection Cable
BC-1Brass Curls
SPG-1Sulphide Free Sponge
1The handpiece will vary based on system configuration.

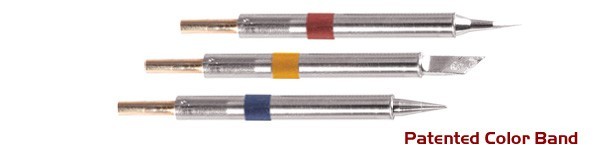

K SERIES - TIP CARTRIDGES (For use with TMT-2000S-K, TMT-2000S-KM).

KSERIES

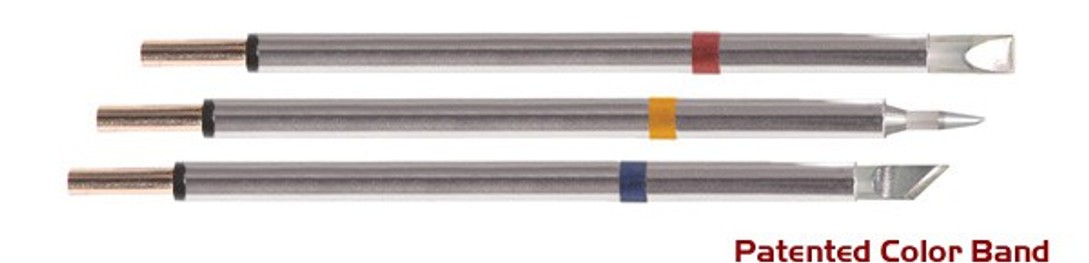

P SERIES - TIP CARTRIDGES (For use with TMT-2000S-P, TMT-2000S-PM)

PSERIES

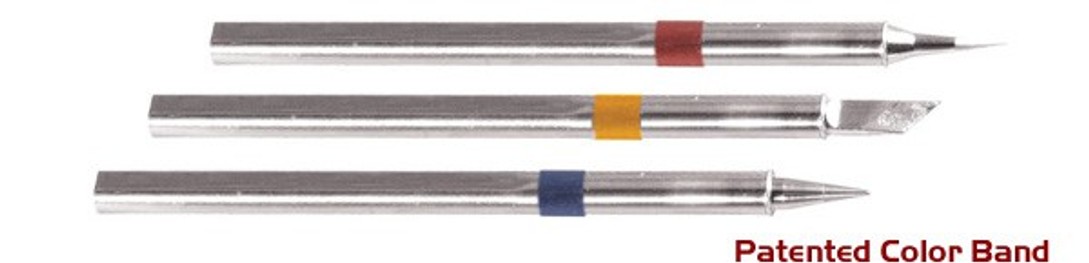

S SERIES - TIP CARTRIDGES (For use with TMT-2000S-SM)

SSERIES
