Basic configuration
- 3 axis positioning system
- Max. PCB size 508 x 508 mm
- Solder module with low-maintenance electromagnetic solder pump
- Exhaust control
- Status indication lights
- Process visualization incl. soldering protocols, process data recording, monitoring function, indication of maintenance and errors
- Roller conveyor
- Conveyor width adjustment
- Infeed/outfeed module
- High-precision spray fluxer

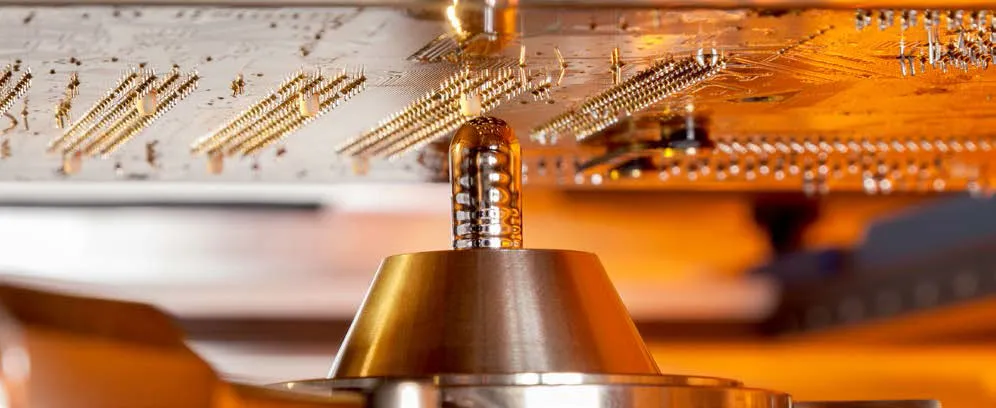

- Lead-free single point solder module with solder level monitoring and wave height measurement
Highlights
- Perfect for manufacturing islands
- Large PCB formats
- Extremely maintenance-friendly
- Wear-free induction pump
- Full-area heating
- Modern process visualisation with ERSASOFT 5
As a leader in selective soldering technology, Ersa has expanded its range of products in this sector by a compact selective soldering system. The SMARTFLOW has a smaller footprint than the bigger VERSAFLOW systems. This batch system impresses with state-of-the-art technology and easy operability.
The SMARTFLOW manages with an area barely more than what would be required for a modern hand soldering work station. It is thus perfect as an entry-level system or for smaller productions. PCB sizes of 20 x 20” (508 x 508 mm) can easily be processed with the SMARTFLOW. Going by the “Compact without compromises” motto, you do not need to dispense with anything with this system. Just like all Kurtz Ersa selective systems, this machine is equipped with the low-maintenance and wear-free solder pot with induction pump and has a full-area preheating, which can be segmented depending on the heat requirement and assembly size. The reliable Kurtz Ersa high-precision spray flux system is also used here.
SMARTFLOW is equipped with modern ERSASOFT 5 operating software. This new version of our time-tested machine software impresses with its user-oriented structure in addition to modern visualisation. Thanks to individual user interfaces, every user group obtains the required data and information at a glance. The new interface is also convenient when it comes to process monitoring. Thanks to modern PiP technology (picture-in-picture), soldering parameters and a live process picture are available at a glance, for optimum control during every single soldering process. This system is also surprisingly smart during maintenance work. Thanks to the doors that can be opened widely, all the work can be carried out from one side of the machine. This reduces the required expenditure of time significantly and thus increases the machine availability.
The installation of the machine is just as simple as the servicing. It is ready for use in almost no time after connecting it to the current, compressed air and nitrogen supply. Easy installation, servicing and operability make SMARTFLOW the perfect compact selective soldering system, which also impresses selective soldering professionals with its uncompromising technology.
