OFF-CUT REMOVER HEKTOR 2

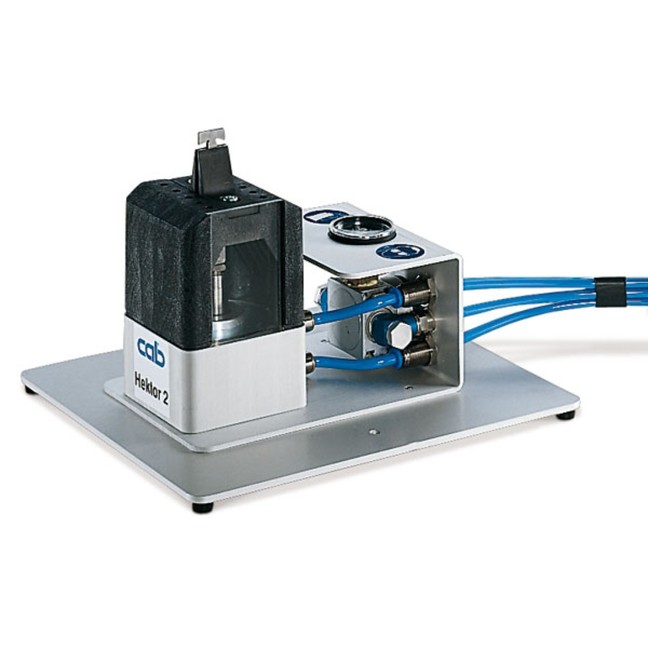

PCBs are separated carefully and quickly, off-cuts are removed precisely and smoothly. A two-part matrix enables the different blades to be assembled resp. exchanged easily. Off-cuts are punched out with the help of a compressed air cylinder. The operating pressure can be set on the unit.

214

hektorhandhabung600

Safe operation

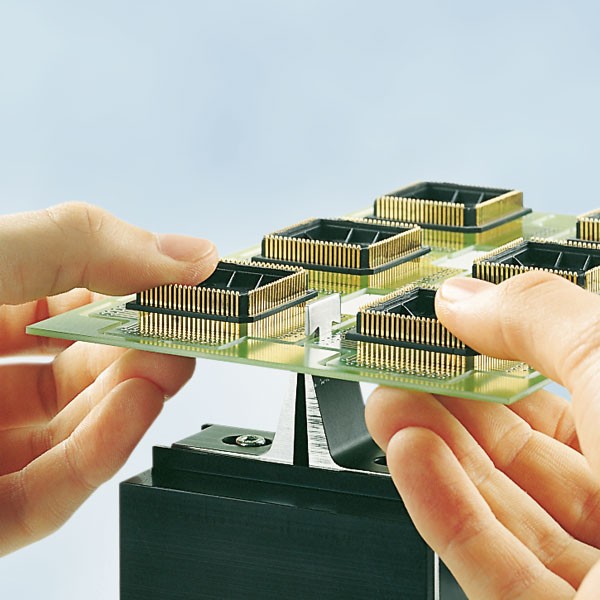

PCBs are positioned with their milled groove over the blade onto the matrix. The off-cut is fed below the punch blade. A foot switch triggers the punching and the off-cut is collected in the bottom tool.

Technical dataHEKTOR 2
Separation methodPunch blade
Operationmanual
PCB thicknessup to 2.5 mm
Air pressure supply1/4" coupling socket
Operating pressure, typical4 bar
Temperature / humidity  Operation
Stock
Transport		 + 10 - 35°C / 10 - 85 % not condensing
 0 - 60° C / 20 - 80 % not condensing
 – 25 - 60°C / 20 - 80 % not condensing
Width x Height x Depth220 x 170 x 255 mm
Weight2.7 kg
ApprovalsCE, FCC Class A
221

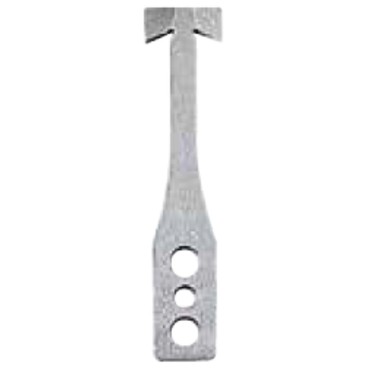

T blade to punch out off-cuts on the right and left margins. Turning the PCB is not necessary

220

L blade used with small distances between the off-cuts

219

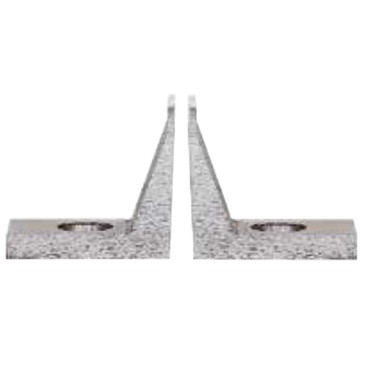

Matrix included in the scope of delivery
