SMT Splice Tape

SMT Splice Tape
15 series

264

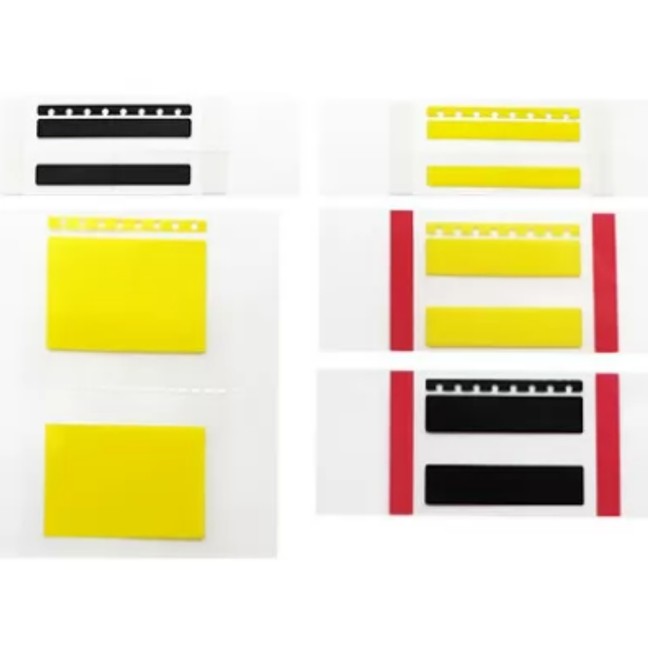

KHJ15 series 8 holes positioning universal splice tape,applicable to all size carrier tapes

Details

  • Product Name : SMS15 Series
  • Material : PET
  • Adhesive : Acrylic
  • Size : 8mm,12mm,16mm,24mm，32mm，44mm，56mm，72mm，88mm
  • Color : yellow,black,blue
  • Peeling-off Force : (N/25mm) By Angle Of 180 Degree≥15

Description

KHJ15 series 8 holes positioning universal splice tape,applicable to all size (8/12/16/24/32/44/56/72/88mm)carrier tapes

15 series splice tape is used for jointing carrier tapes in the SMT process. It is made of tapes and polyester film and release paper, and the tape is with superior adhesion.

Features And Benefits

1. 8 hole positioning, with the help of positioning tool, more accurate jointing.

2. Applicable to all SMT machine (except for machine requiring induction).

Application

Used for SMT process,to solve SMT carrier tape connection problems.

P/NDescription of GoodsQuantityApplication
SMS-1508SMT clip & splice 8mm500pcs/boxfor 8mm carrier tape
SMS-1512SMT clip & splice 12mm500pcs/boxfor 12mm carrier tape
SMS-1516SMT clip & splice 16mm500pcs/boxfor 16mm carrier tape
SMS-1524SMT clip & splice 24mm250pcs/boxfor 24mm carrier tape
SMS-1544SMT clip & splice 44mm250pcs/boxfor 44mm carrier tape

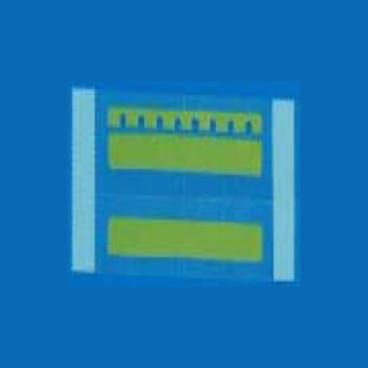

265
SMS1508
Packing 500pcss/box

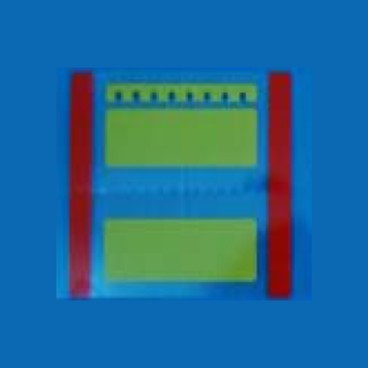

266
SMS1512N

Packing 500pcs/box

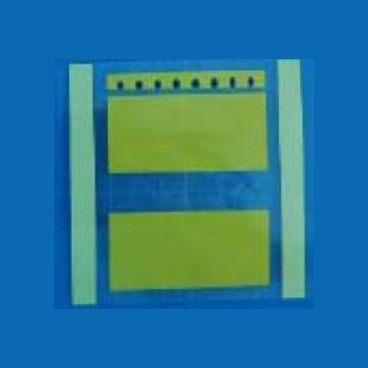

267
SMS1516N

Packing 500pcs/box

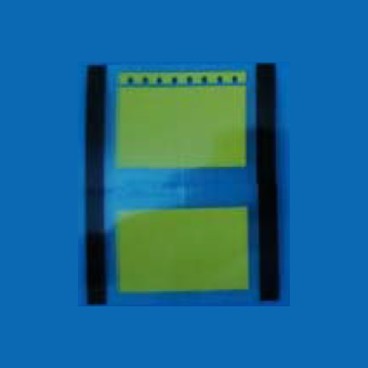

268
SMS1524
Packing 250pcs/box
[[POS2]]
[[POS3]]
SMS-1508

269

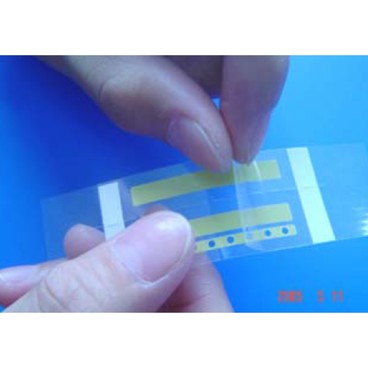

Step 1

Tear off plastic part of the splice tape with hole.

270

Step 2

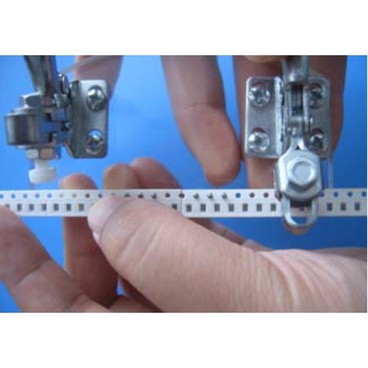

Put pre-cut reel into the orientation clamp.

271

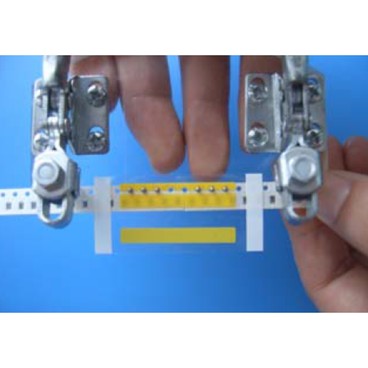

Step 3

Put another pre-cut reel into the orientation clamp.

272

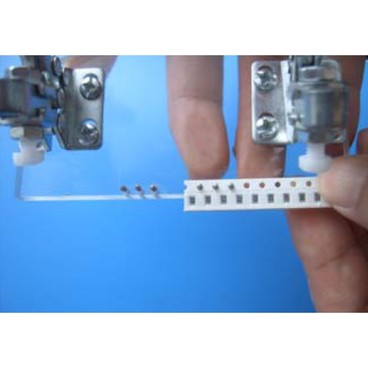

Step 4

Put the splice tape with hole into the pre-cut reel.

273

Step 5

Fold down the splice on the connecting reel.

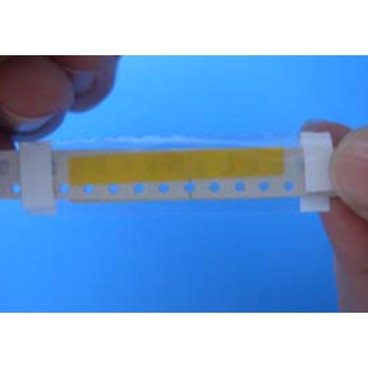

274

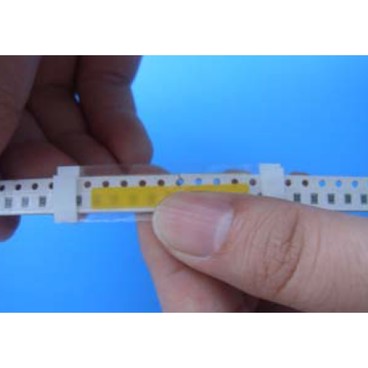

Step 6

Press the splice tape with hole in the connecting reel tightly.

275

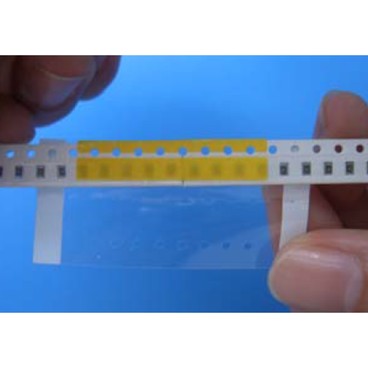

Step 7

Take off the plastic part of the splice tape with hole and then discard.

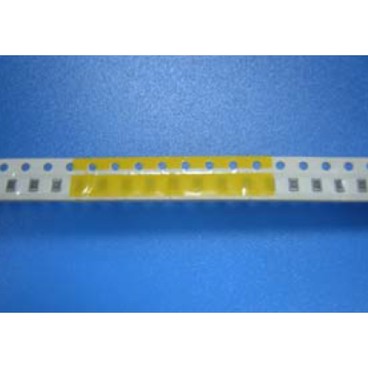

276

Demo : Upside of connecting reel.
