Magnification

Objective Lenses

Eyepieces

Optical Body

-

-

Working Distance

Interpupillary Distance

Diopter Adjustment

-

Stand (Height)

Incident Illumination

Transmitted Light

Stage plate

Base Size

Overall Height

Net Weight

Accessories

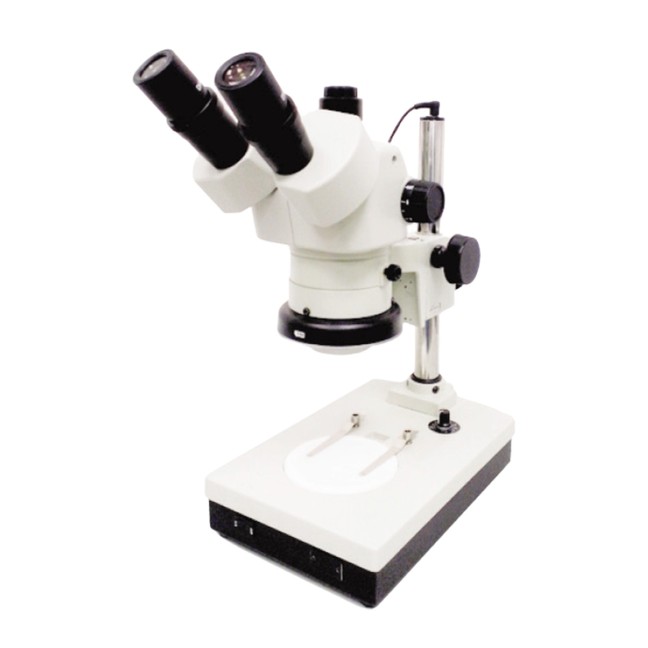

DSZV-44CTPITF-LED

10x to 44x (field of view : 23mm to 5.2mm)

1.0x to 4.4x (zoom ratio : 4.4:1)

Wide Field 10x (DSW10x), Field Number 23

DSZT : 360 deg. rotatable trinocular type, 45 deg. inclined eyepiece tubes, vertical photo-tube

DSZV : 360 deg. rotatable trinocular type, 45 deg. inclined eyepiece tubes, vertical CS mount tube for 1/3 CCD/CMOS, Multi-Viewing

90mm

52mm to 75mm

-

DSZT : +/- 7.2D on both eyepiece tubes & 12mm on vertical tube / DSZV : +/- 7.2D on both eyepiece tubes & 4.7mm on vertical tube

Pole type (300 mm)

Built-in LED ring light with intensity control

Fluorescent Lamp 5W

Round plastic stage (Ø = 80 mm)

180 mm x 265 mm

354 mm

5.6 kg

Rubber eyeguards, C-Dust cover, Tension control pin,
