Product Description

The electrostatic dust box adopts high frequency AC. The design of removing static electricity and collecting dust in one way. It is suitable for removing static electricity and dust from liquid crystal parts, lens resin molded products and electronic parts, and can completely prevent the secondary adhesion of dust. The small box ensures an effective range of static electricity and dust removal, thereby reducing costs, improving the quality and efficiency of operations, and saving operating space.

Technical Parameters

Input power supply voltage : AC220V/50HZ

Output voltage : DC 24V

Install the anti-static appliances : KZ-02C*1

Current consumption : 1100mA~1500mA

Loaded destaticizing : KZ-02C (1set)

Ion balance : Automatic ion balance system 0±15V

Applied airflow : Air (clean air containing no water or oil)

Electric actions time : 0~30s free setting

Operating pressure : 0.05-0.7 Mpa free setting

Anti-static property : (within ± 1000 - ±100/ls/200mm/0.4Mpa) ±15V

Applied environment temperature : 0 ~40℃ (no condensation)

Applied environment humidity : 30-70% RH (no water drop condensation)

Piping connecting : Φ8 quick coupling

Openings size(mm) : 155 x 123

Overall size(mm) : 280 x 245 x 167

Work action area(mm) : 158 X 140 X120

Weight (kg) : 4.6

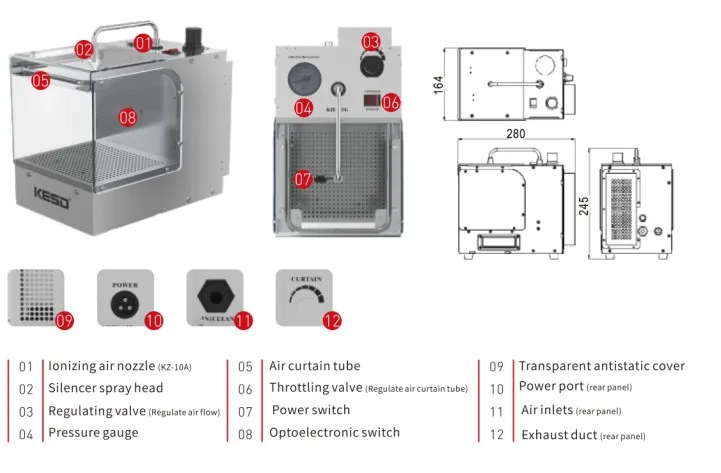

External View
