Details

• Product Name : TS630C
• Total Tape Thickness : 0.135±0.005mm
• Backing Thickness : 0.075 ±0.002 Mm
• Adhesion To Steel : Before Heating : 1-2N/25mm; After Heating : 0
  N/25mm (135-150℃ * 5-15mins)
• Tensile Strength At Break : ≥3.5KN/M
• Elongation At Break : ≥45%

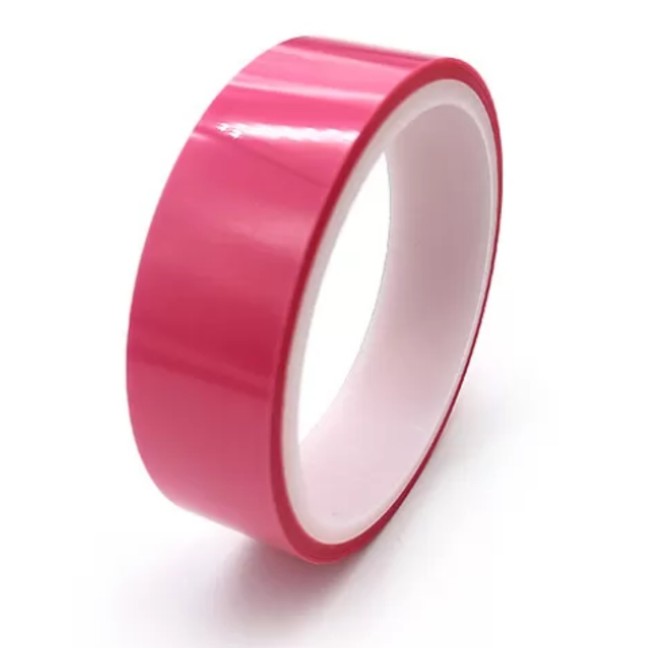

TS630A is a polyester film backed pressure-sensitive adhesive single-sided coated thermal release tape. It has a high initial adhesion and easily is peeled off by heating under a certain high temperature(135-150℃).

Features And Benefits
1. Adhesive strength becomes almost “zero” by heating and can be removed without damaging substrates.
2. Substrates can be processed by temporarily fixing pressure sensitive adhesive face to the stage.
3. Provides a high processing accuracy since substrates are kept in a fixed position.
4. Three types (rolls, labelers and sheets) are available.
5. Environmentally friendly since no cleaning is required for substrates.

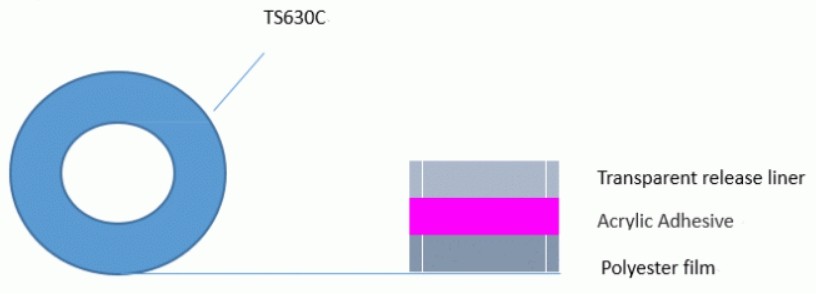

Construction

Application
TS630C is a unique thermal release tape that is excellent for high temperature applications. Adhesion is virtually eliminated by heating to release temperature, available in single and double sided. Polyester film, acrylic adhesive with PET liner.

Storage
1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.
2. Shelf life: 12 months from the date of manufacture when stored in initial packing.
