Details

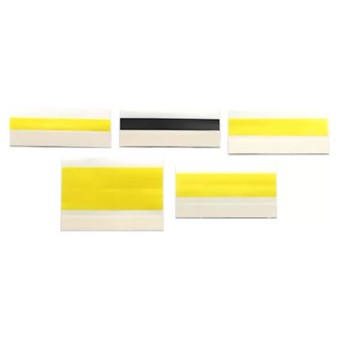

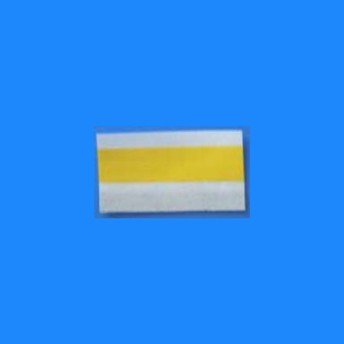

- Product Name : SMS17 Series
- Material : PET
- Adhesive : Acrylic
- Size : 8mm,12mm,16mm,24mm,32mm,44mm,56mm,72mm,88mm
- Color : yellow,black,blue,green,pink
- Peeling-off Force : (N/25mm) By Angle Of 180 Degree≥15
Description
KHJ17 series KHJ17 series single positioning splice tape, suitable for all specifications (8/12/16/24/32/44/56/72/88mm)
17 series single-sided splicing tape, suitable for joint carrier tapes in SMT process. Which is made of a adhesive tape and the release paper with good adhesion.
Features And Benefits
1. Edge positioning, easy to operate.
2. The connection is more stronger with copper clips, suitable for Siemens and Fuji models.
Application
used in the SMT process,for connection of various carrier tapes during SMT patching.
Storage condition
- Temperature :20℃-30℃
- Ralative Humidity(RH):45%-65%
| P/N | Description of Goods | Quantity | Application |
| SMS-1708 | SMT single splice tape 8mm | 1000pcs/box | for 8mm carrier tape |
| SMS-1712 | SMT single splice tape 12mm | 1000pcs/box | for 12mm carrier tape |
| SMS-1716 | SMT single splice tape 16mm | 1000pcs/box | for 16mm carrier tape |
| SMS-1724 | SMT single splice tape 24mm | 500pcs/box | for 24mm carrier tape |
| SMS-0600 | SMT splice clip | 4000pcs/box | for all kinds of carrier tape |

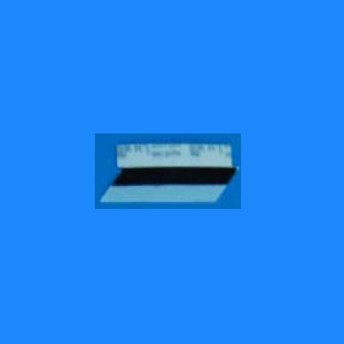

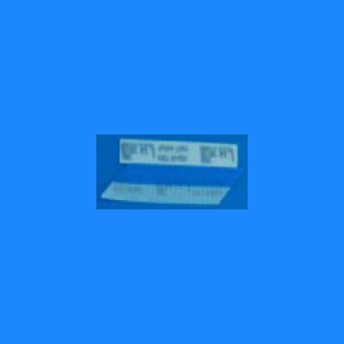

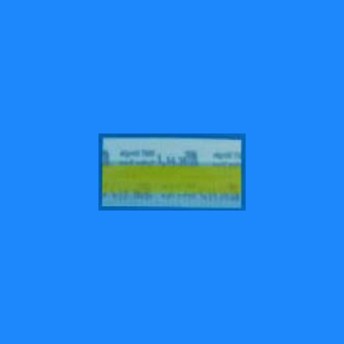

packing 1000pcs/box
Packing 1000pcs/box
Packing 1000pcs/box
Packing 1000pcs/box
Step 1
Put splice clip into splice tool.
Step 2
Put one pre-cut reel into splice tool.
Step 3
Put another pre-cut reel into splice tool.

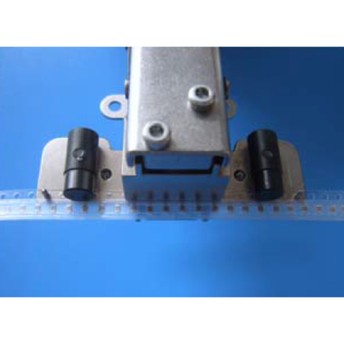

Step 4
Clench the splice tool.

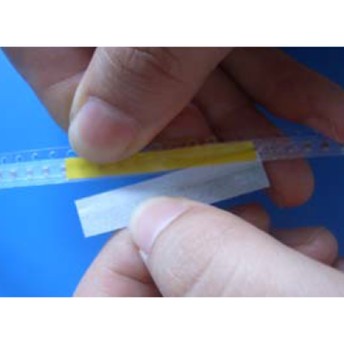

Step 5
Peel off the paper liner.
Step 6

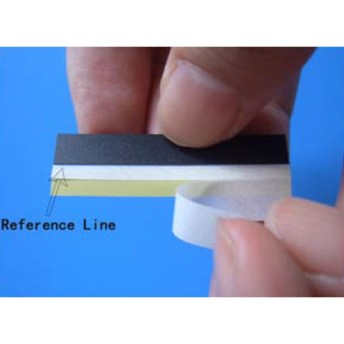

Black strop in line with the edge of the reel to stick splice tape.

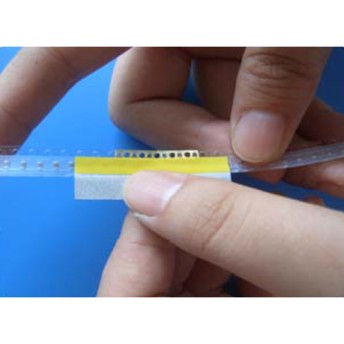

Step 7
Peel off the paper liner.

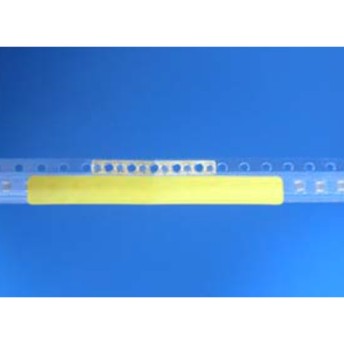

Demo : Upside of connected tape.

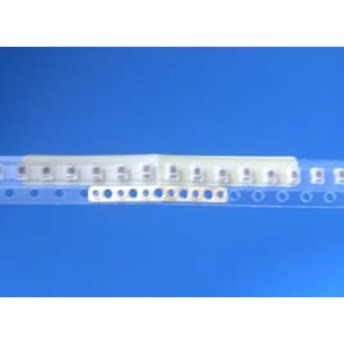

Demo : Downside of connected tape.
