Features and Benefits
2-part, low viscosity, industrial grade epoxy adhesive. It cures at room temperature with minor shrinkage to form an ultra clear adhesive bondline.

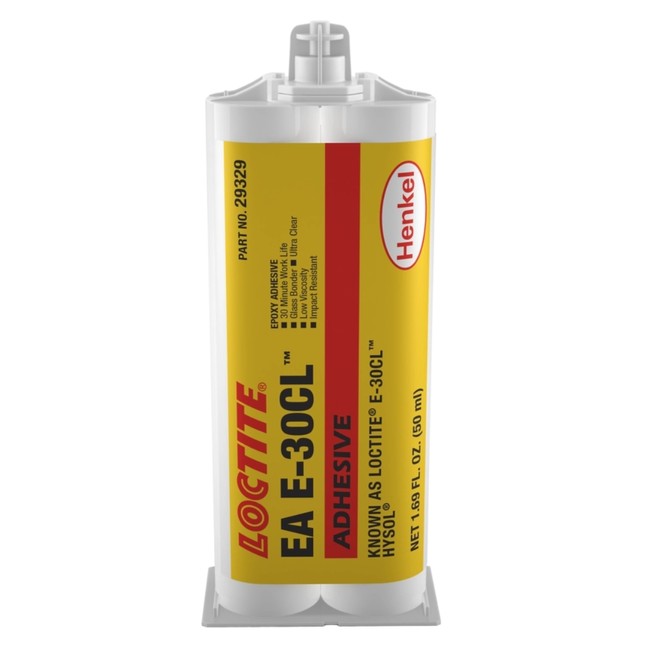

LOCTITE®EA E-30CL is a clear, colorless to slightly yellowish, 2-part, low viscosity, industrial grade epoxy adhesive. It cures at room temperature with minor shrinkage to form an ultra clear adhesive bondline with excellent impact resistance. It resists a wide range of chemicals and solvents and bonds most materials including glass, optical fibers, ceramics, metals and many rigid plastics.
Technical Information
| Applications | Bonding Fabric, Bonding Plastic, Structural Bonding |
| Color | Ultra Clear |
| Cure type | Room Temperature (Ambient) Cure |
| FEA (finite element analysis) | Finite Strain, Viscoelastic |
| Key characteristics | Shrinkage: Low Shrinkage, Temperature: High Temperature, Temperature: Low Temperature, Temperature: Medium Temperature, Viscosity: Low Viscosity |
| Mix ratio, by volume | 2 : 1 |
| Mix ratio, by weight | 100 : 46 |
| Number of components | 2 Part |
| Recommended for use with | Ceramic, Glass, Metal, Plastic |
| Mixed | |
| Specific gravity, Mixed @ 25.0 °C | 1.07 |
| Resin | |
| Specific gravity, Resin @ 25.0 °C | 1.1 |
| Viscosity, Brookfield - RVT, Resin @ 25.0 °C Spindle 6, speed 20 rpm | 10500.0 mPa·s (cP) |
| Hardener | |
| Specific gravity, Hardener @ 25.0 °C | 1.0 |
| Viscosity, Brookfield - RVT, Hardener @ 25.0 °C Spindle 5, speed 20 rpm | 2250.0 mPa·s (cP) |
