CI-300B

Infinity Corrected Optics Biological Microscopes
CI-300B

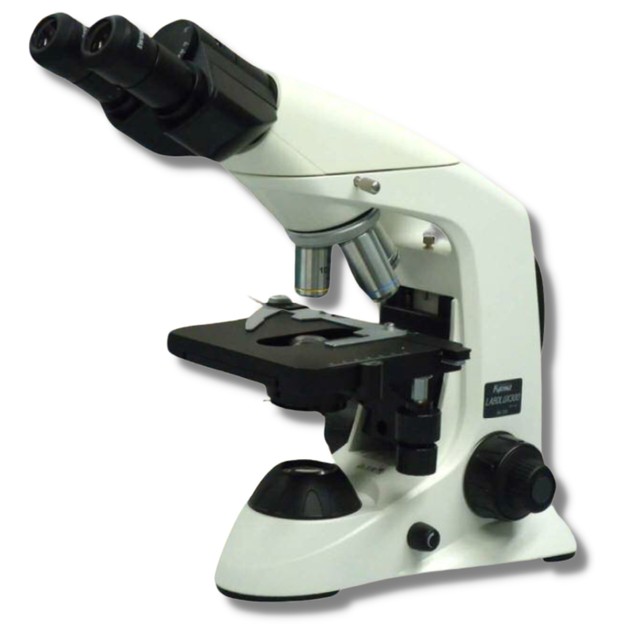

Model : CI-300B (BINOCULAR)

Available in binocular Siedentopf or trinocular model to suit the purpose.
Fixed type stage for steady operation.
Built-in white LED with Abbe Condenser and its diaphragm with intensity dial for brighter images.
High resolution and perfect definition with Infinity optical correction system.
Coaxial coarse and fine focusing adjustment knob for easy focusing.
Low position operation, convenient for long term usage.
Cable hunger for convenient storage.
Fixed inward type quadruple nosepiece for easy handling of sample.

Specifications

Total magnification	40X - 1,000X
Body	Inward Quadruple Revolver
Focusing mechanism	Up and down movement of stage, 25mm coarse stroke
Coarse and fine device	Coaxial coarse and fine focus, coarse focus with tension control
Lighting system	White LED illumination, built-in power supply, with light intensity adjustment dial
Observation Tube (Light split ratio)	30° angle of inclination, Siedentopf, interpupillary distance adjustment rage 50~75mm, with diopter adjustment on left eyepiece tube Binocular Tube (binocular part 100%)
Stage	Coaxial large mechanical stage(lower left handle) / Size : 142.5mm(W) x 133mm(D) Stroke : X=75mm Y=35mm, 2 slides can be held
Eyepiece	WF10x, FN20
Objective lens (Infinity)	Plan 4x, Plan 10x, Olan 40x (with spring) , Plan 100x (oil) (with spring)
Condenser	Abbe condenser N.A 1.25 with Iris diaphragm
Physical Dimensions	198mm(W) x 412mm(D) x 385mm(H)
Weight	5.4kg

Eyepiece

Eyepiece	Field Number	Remarks
WF10X	20	with micrometer installation frame

Objective lens
