Liquidyn P-Jet SolderPlus Jetting System
This complete solder paste jetting system is designed specifically to jet Nordson EFD SolderPlus® dispensing paste with high accuracy and repeatability at faster speeds for increased productivity.
Overview
The pneumatically actuated Liquidyn® P-Jet SolderPlus jet valve features a modular design, which simplifies maintenance and reduces service time. Pre-qualified SolderPlus solder paste from Nordson EFD streamlines implementation of the system by delivering a complete, qualified solution. The non-contact dispensing system eliminates the need for Z-axis movement, allowing for faster production speeds. The system also makes it easy to dispense solder paste consistently onto uneven surfaces. It protects fragile substrates from damage since there is no contact. The P-Jet SolderPlus valve jets Nordson EFD’s specialized, ISO-certified solder paste formulations in a wide variety of leaded and lead-free alloys. Contact EFD solder paste representatives to identify the SolderPlus formulation that best suits your jetting application.
Unparalleled Speed and Accuracy
Jetting, or non-contact dispensing, allows manufacturers to dispense small amounts of fluids at faster speeds without sacrificing accuracy. The results include reduced waste, rework, and rejects, and higher throughput yields.
Because there is no contact between the dispensing tip or nozzle and the part itself, jetting can reduce part damage and contamination. Fluid can be applied on hard-to-reach and uneven substrates.
The Complete Jetting Valve System

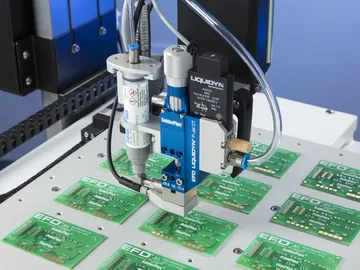

The complete system includes a Liquidyn P-Jet SolderPlus jet valve, SolderPlus solder paste, and a Liquidyn V200 controller.
DATA SHEET
z-z579136871587.png)
Liquidyn P-Jet SolderPlus
