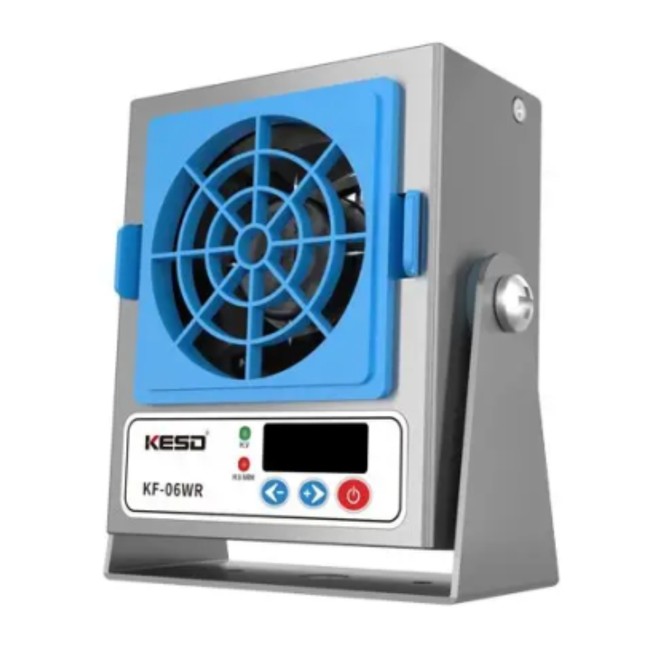

Top Quality Antistatic Desktop High Frequency Mini Ionizing Air Blower
KF-06WR
Product Features
1. The air volume can be adjusted from 1 to 7 levels for applications.
2. Fan signal feedback, real-time monitoring of fan operation status.
3. Special tungsten alloy discharge needle, which is not easy to wear after long-term use.
4. Adopting high-frequency AC mode, excellent ionization balance has been achieved.
5. Unique appearance design, stainless steel shell, suitable for clean room.
6. The discharge pin components and front windshield can be flexibly disassembled for easy cleaning, maintenance, and replacement.
Technical Parameters
| Product Model | KF-06WR |
| Input power supply voltage | DC24V |
| Decay normal operation indicator light | If decay operation is normal, the green indicator light is on |
| Decay abnormal indicator light | if decay opertion is abnormal, the red indicator light is on |
| Decay time | about 2s (300mm) |
| Ion balance | Automatic ion balance system 0±15V |
| Air volume | 0.55 - 0.71 m3/mm (constant air flow) |
| Ozone concentration | Below 0.004ppm (distance 50mm) |
| Applied environmental temperature | 0~40℃(no condensation) |
| Applied environmental humidity | 15-75% RH (no water drop condensation) |
| Overall size / mm | 84.5*55*112 (exclouding stents) |
| Weight | 1.26 Kg (exclounding stents) |

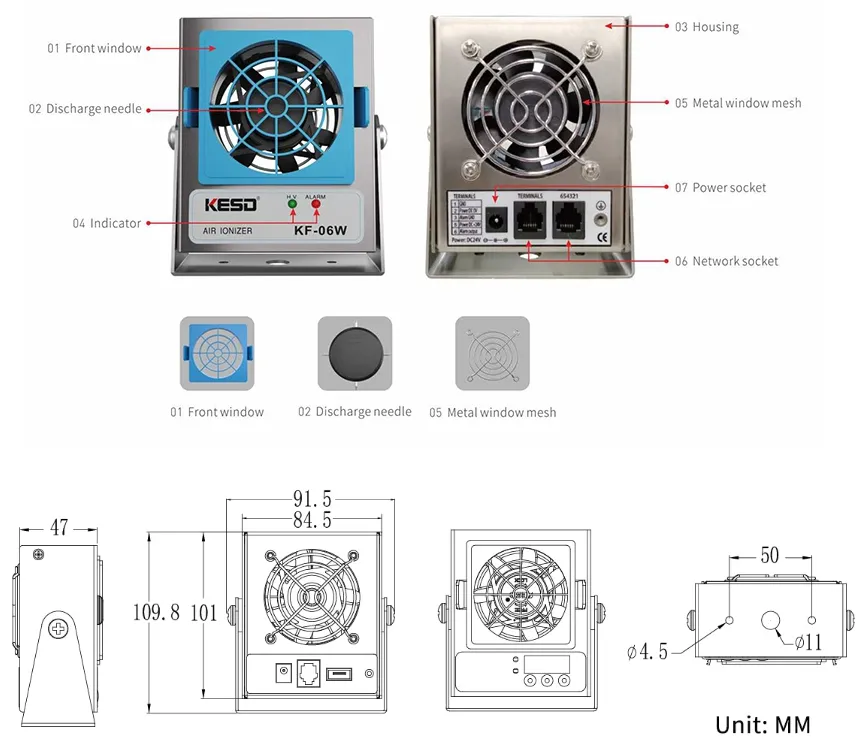

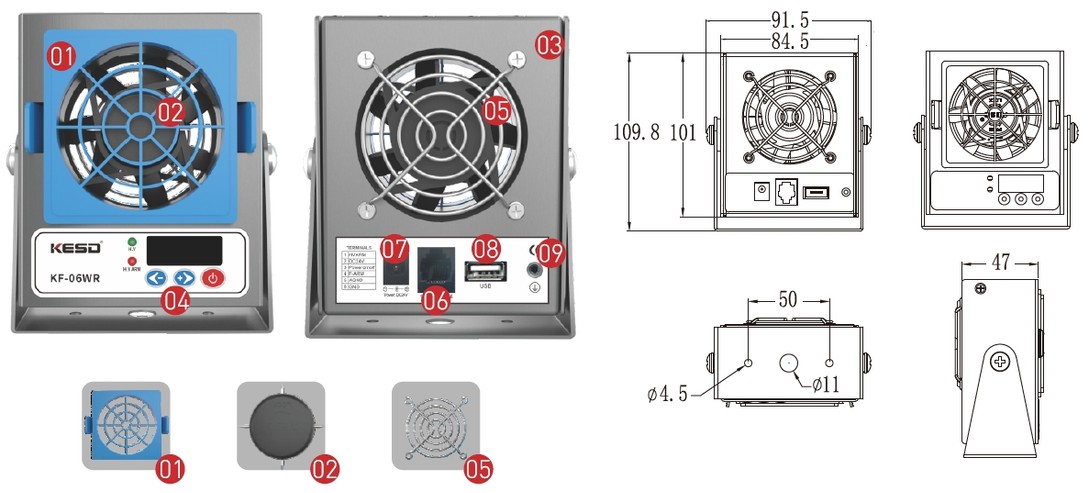

01 Front window
The linear grid type air wondow is used to make the blow wind linear, increase the static elimination effect and can be flexibly disassembled for easy maintenance.
Accessory can be purchased separately.
02 Discharge needle
Discharge needle parts can be disassembled for replacement and maintenance. Cleaning or maintenance outside the working area to avoid secondary pollution.
Accessory can be purchased separately.
03 Housing
The outer casing is made of stainless steel which is more suitable for use in clean rooms.
04 Indicator
- H.V Green lights on in normal working condition.
- Red lights on in abnormal operation condition.
05 Metal window mesh (60x60mm)
Accessory can be purchased separately.
06 Network socket
07 Power socket
08 USB port
09 Ground soket
