Magnification

Objective Lenses

Eyepieces

Optical Body

Working Distance

Interpupillary Distance

Diopter Adjustment

Stand (Height)

Incident Illumination

Base Size

Overall Height

Net Weight

Accessories

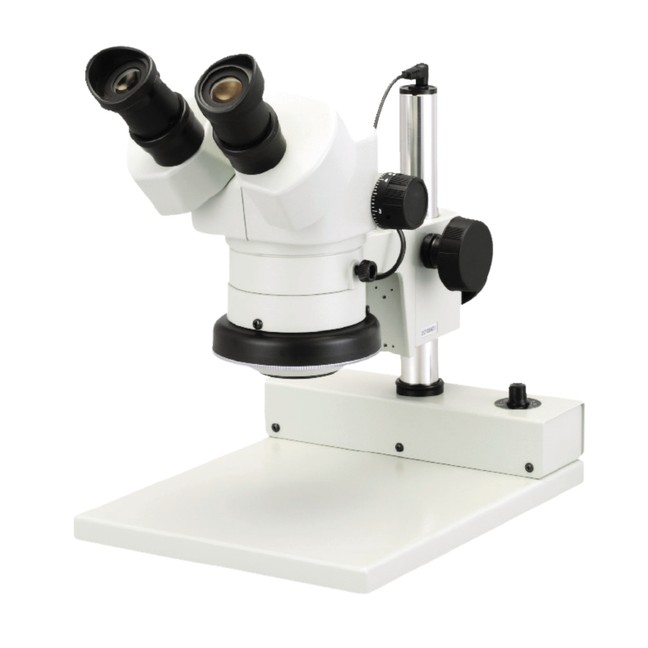

DSZ-44JPFM-LED

10x to 44x (field of view : 23 mm to 5.2 mm)

1.0x to 4.4x (zoom ratio : 4.4:1)

Wide Field 10x (DSW10x), Field Number 23

360 degrees rotatable binocular type, 45 degrees inclined eyepiece tubes

90 mm

52 mm to 75 mm

+/- 7.2D on both eyepiece tubes

Pole type (300 mm)

Built-in LED ring light with intensity control

220 mm x 284 mm

328 mm

5.4 kg

Rubber eyeguards, Tension control pin, Dust cover
