LOUPES

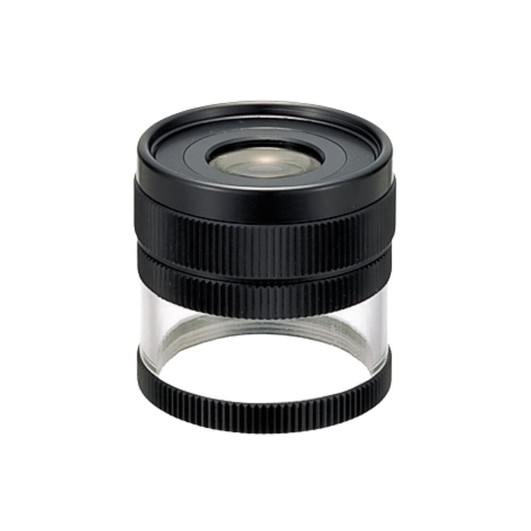

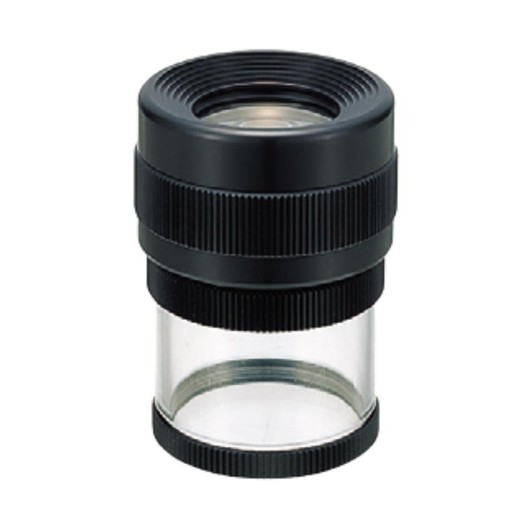

M1207
25 mm, 7x, with 33mmɸ scale #1,2,3 or 4
4 glass lenses (4 elements), fully coated,
12mm eye relief, in vinyl case
57 mm height, N.W.84g
M1210
19 mm, 10x, with 33mmɸ scale #1,2,3 or 4
2 glass lenses (3 elements), fully coated,
12 mm eye relief, in vinyl case
35 mm height, N.W.43g

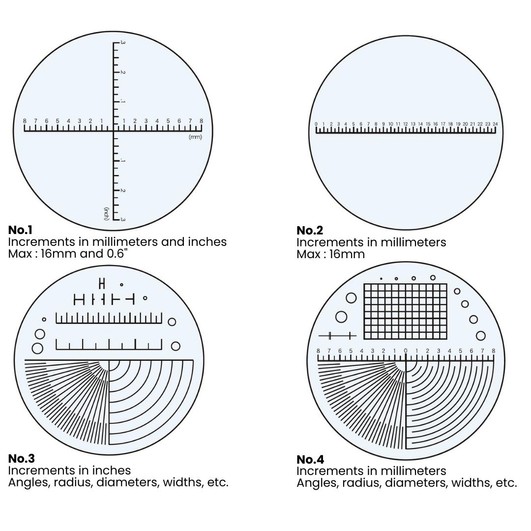

SCALE PATTERNS

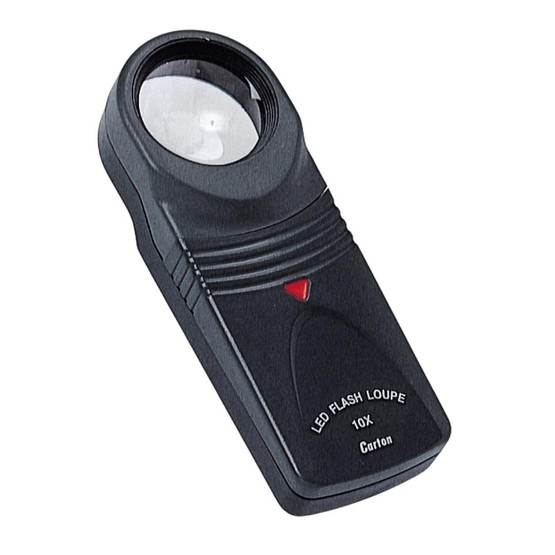

LED LOUPES, POCKETABLE TYPE
R7519
26 mm, 10x glass lens *) AAA cell battery x 3 are not included.
R7526
21 mm, 15x glass lens *) AAA cell battery x 3 are not included.

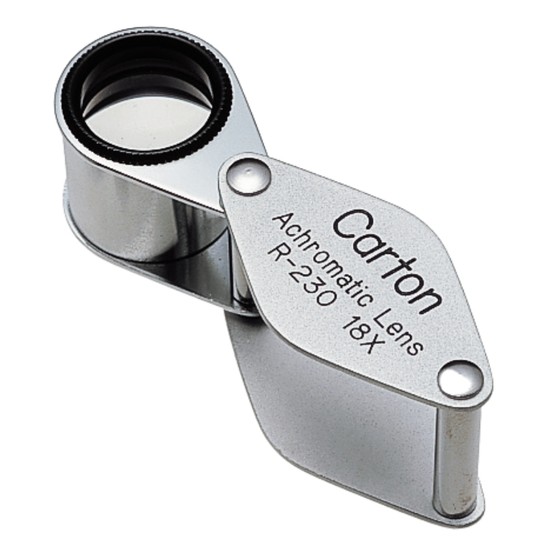

15 mm, 18x
Quardruplet lens

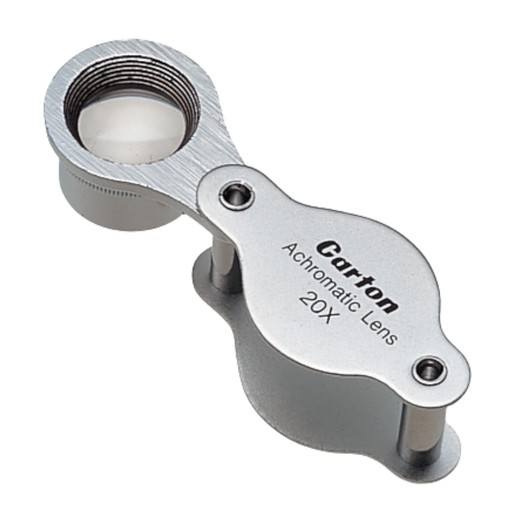

12 mm, 20x
Triplet lens

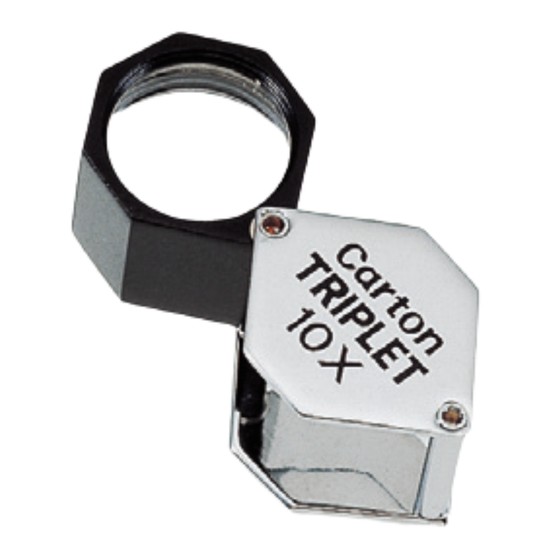

R2450
18 mm, 10x
Steinheil triplet lens
No coating for true color
Resolution : 67 lines/mm

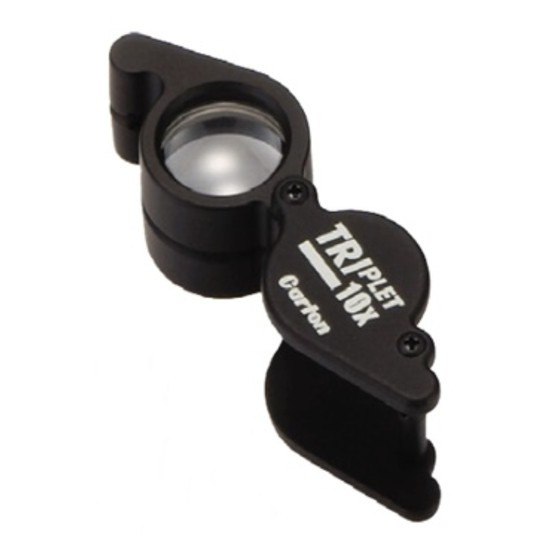

R7520
18 mm, 10x
Triplet lens
Resolution : 64 lines/mm

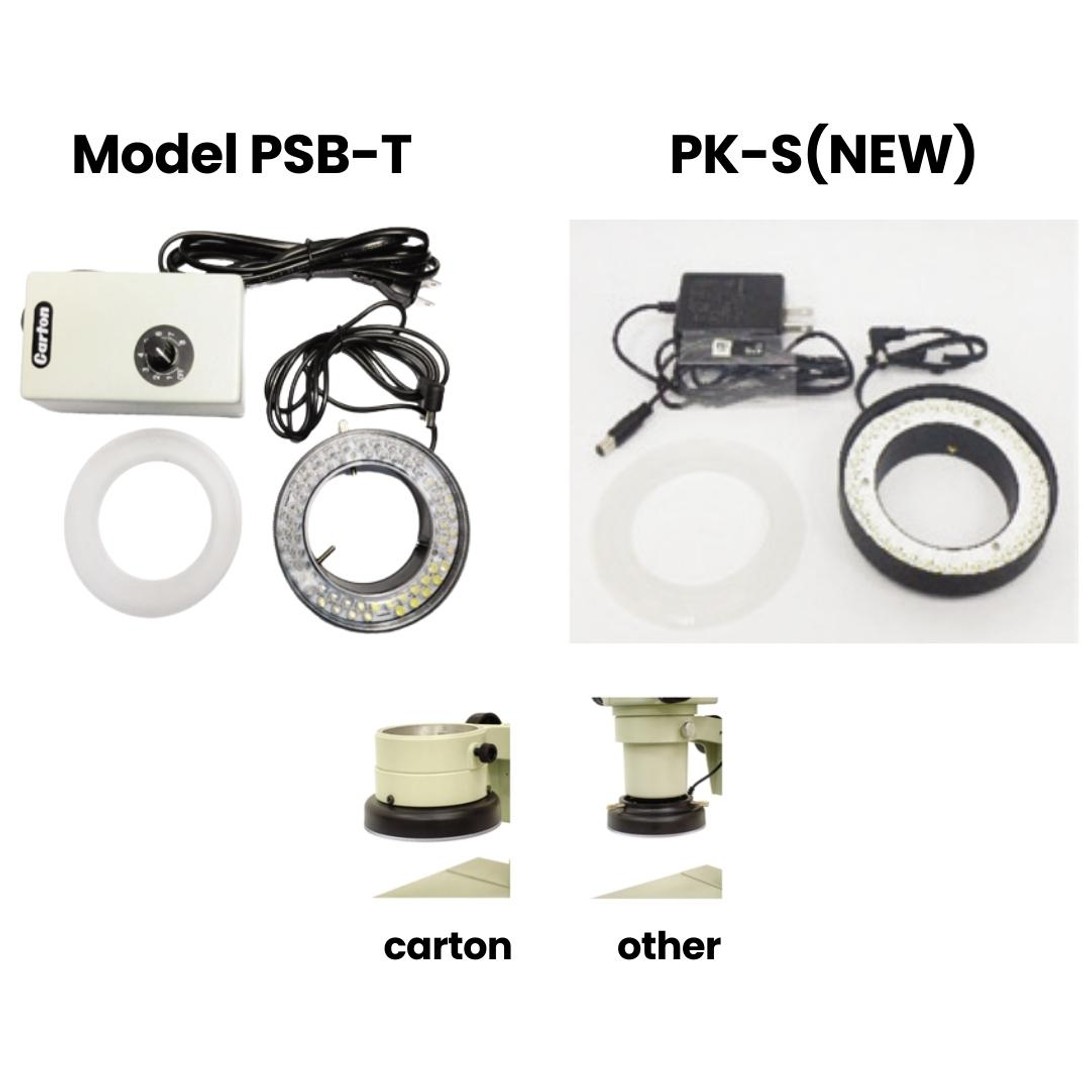

LED SET ESD COLOR AND LED CHIP TYPE
| Input Voltage Consume Power Color Temperature Lamp Life Operating Temperature Humidity Range Mounling Diameler Adapter Dimensions Adapter Shell Material Transmitted illuminator AC Adpter | 100-240V A.C. 50/60Hz 5w/60LEDS 7500K Greater than 20,000 hours 32 to 104 f (0 to 40 C) 0 to 80% non-condensing 70 mm 124 x96 x 45 mm ABS Plastic SMD LED (70 pcs) , Ring type, Dimmeble Input : AC 100-240V 50/60Hz 0.4A Output : DC 24V 0.5A |
-
M1242
125mm, 2x glass lens
48 pcs. LEDs with AC adapter
N.W. 3.8kg
-
M1243
125mm, 3.5x glass lens
48 pcs. LEDs with AC adapter
N.W. 3.7kg
