Details
- Product Name : SMS19 series
- Material : PET
- Adhesive : Acrylic
- Size : 8mm,12mm,16mm,24mm

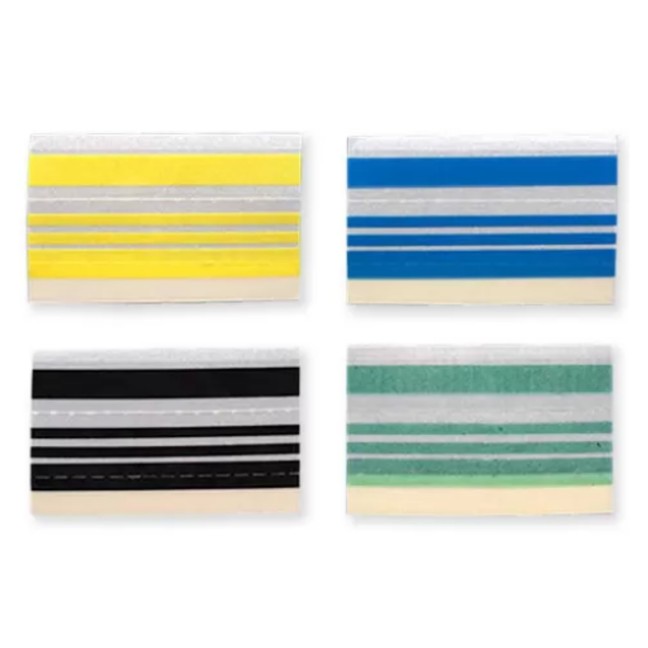

- Color : yellow,black
- Peeling-off Force : (N/25mm) By Angle Of 180 Degree≥15
Description

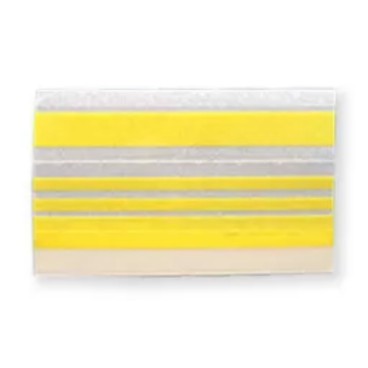

KHJ 19 Series SMT Splice Tape with four strips tape applicable for all sizes of carrier tapes 8/12/16/24/32/44/56/72/88mm
KHJ 19 Series SMT Splice Tape used to joint two carrier tapes reels during SMT processing. It with super adhesion and made of there layers:tape,release liner and removalable PET.
Features And Benefits
1. Guide alignment,high precise jointing.
2. Jointed carrier tape without tape covered in the middle to reduce feeder jam rate.
3. Applicable for universal,Juki,Sanyo,Hitachi machines.
Application
Used to joint carrier tapes during SMT processing.
Storage condition
- Temperature :20℃-30℃
- Ralative Humidity(RH):45%-65%
| P/N | Description of Goods | Quantity | Application |
| SMS-1908 | SMT special splice tape 8mm for universal, juki, sanyo feeders 4pcs of yellow splice tape with a reference line | 500pcs/box | For 8mm carrier tape |
| SMS-1313G | SMT special splice tape 8mm for universal, juki, sanyo feeders 4pcs of yellow splice tape with 8 holes | 500pcs/box | For 8mm carrier tape |
SMS1908M
Packing 500pcs/box
Packing 500pcs/box
Packing 500pcs/box
Packing 500pcs/box
SMS-1908
Step 1

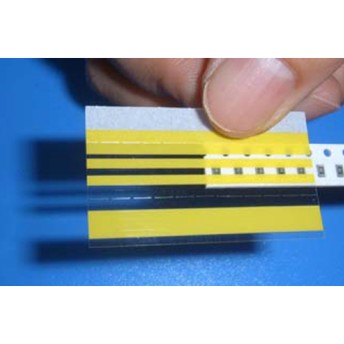

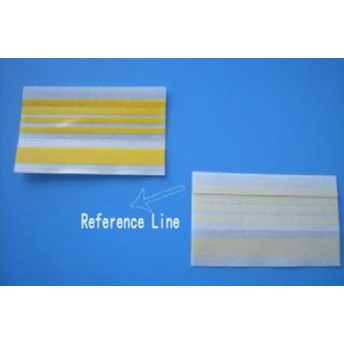

Stick one pre-cut reel on splice tape in line with a refernce line.
Step 2

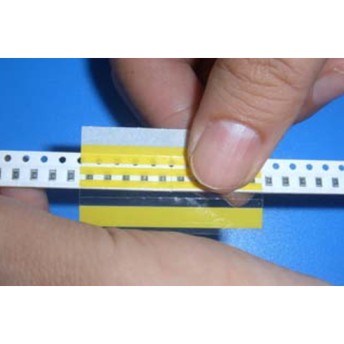

Stick another pre-cut reel on splice tape in line with a reference line.

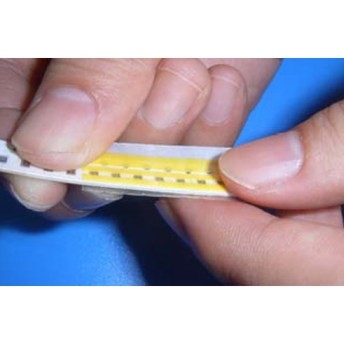

Step 4
Fold down splice tape.
Step 5

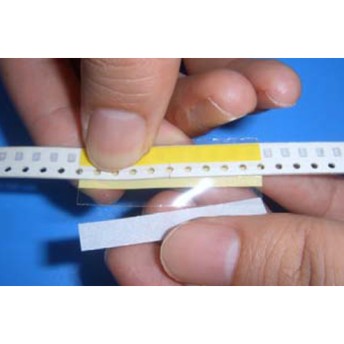

Tear off the reference liner.

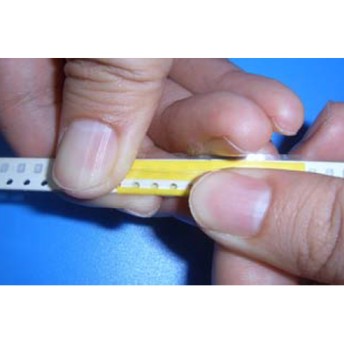

Step 6
Fold down the splice tape over the connecting reel.

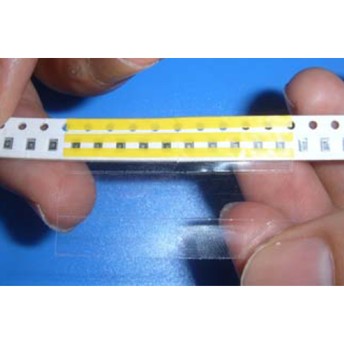

Step 7
Tear off the plastic part of splice tape.

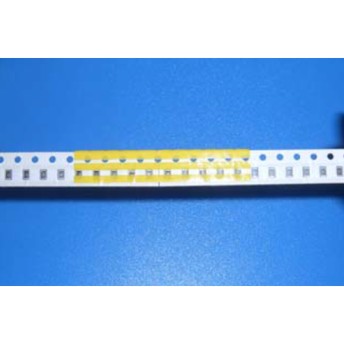

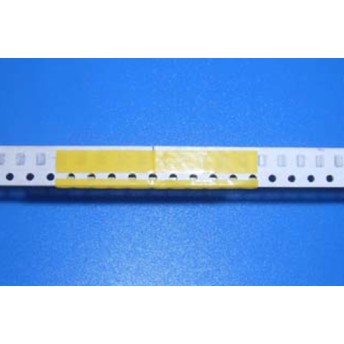

Demo Downside of connected tape.
