Features
1. Three-dimensional high-speed and precise dispensing
Unique controlling system plus advanced software, combined with high-precision three-axis robot, realize three-dimen-sional high-speed and precise dispensing
2. Powerful three-axis motion platform and unique control software
It can dispense points, lines, circles, arcs and other trajectories according to the settings, and at the same time complete. The automatic two parts AB adhesive materials ratio-mixing.
3. The machin includes functions able to perform degassing, stirring, heating, automatic cleaning
4. The machine can also works with pressure detection, fush-to-dean and other functions (optional)
The operation is simple, which greatly saves the time of manual proportioning and mixing, improves efficiency, saves costs, and is cost-effective
5. Automatic dispensing of various two-component glues, electric (wire) circuit board industry
Technical Specification

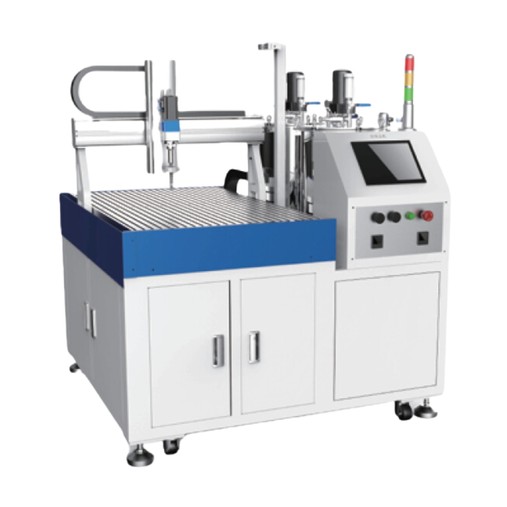

| Model | SEC-S3030C |
| Working Range | 500(X)*700(Y)*100(Z)mm |
| Machine Dimensions | 1300*1250*1600 (L*W*H)mm |
| Traveling Speed | 0-300mm/s (X-Y), 0-100mm/s (Z) |
| Mixing Ratio (adj.) | ±2% |
| Dispensing Accuracy | ±2% |
| Mixing Ratio (adj.) | 100:100~100:20 or 100:20~100:10 adjustable |
| Potting Speed | 1g/s~10g/s or 5g/s~20g/s or 10g/s~30g/s |
| Working Viscosity | <100000cp |
| Operating System | Robot control + Touch screen or Industrial PC computer + Monitor |
| Metering System | Step motor + Gear pump / Screw pump or Servo motor + Piston pump |
| Control Method | Switch button, or software setup |
| Anti-clogging Setting | 0-9999s (adj.) |
| Robot Traveling System | Micro step moto + Synchronize belt |
| Power Supply | AC220V |
| Machine Weight | 450KG (est.) |
| Working Environment | Relative humidity : 20-90%, TEMPERATURE : 0-40 °C |
