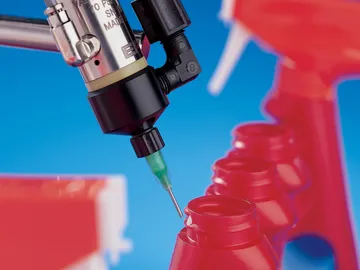

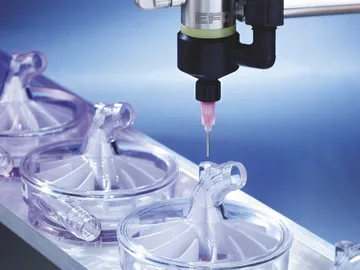

752V Diaphragm Valves
The 752V Series diaphragm valve delivers fine flow control when dispensing solvents, cyanoacrylates, anaerobics, fluxes, UV-cure adhesives, and other low- to medium-viscosity fluids.
Overview
The open/close stroke is adjustable from 0.13 mm to 0.64 mm (0.005" to 0.025"), producing a very fast response and positive shutoff. Wetted components made from an inert ultra-high molecular weight (UHMW) polyethylene make the 752V Series an ideal solution for dispensing adhesives, anaerobic threadlockers, and other reactive fluids.
Available Options
752V Series
Actuated by an external solenoid, capable of open times as short as 15 milliseconds, and operates at more than 500 cycles per minute.
752V with BackPack™ Valve Actuator
Actuated by a compact solenoid on the valve’s actuating air cylinder for faster response time, less variation due to fluctuating plant air supply or air line lengths. Provides valve actuation speeds as short as 5 to 6 milliseconds, and operates with cycle rates as high as 800 cycles per minute.
Engineered for the most demanding manufacturing environments
Nordson EFD valve systems are proven to provide precise, reliable fluid dispensing control for tens of millions of trouble-free cycles before maintenance is required.
The Complete Valve System

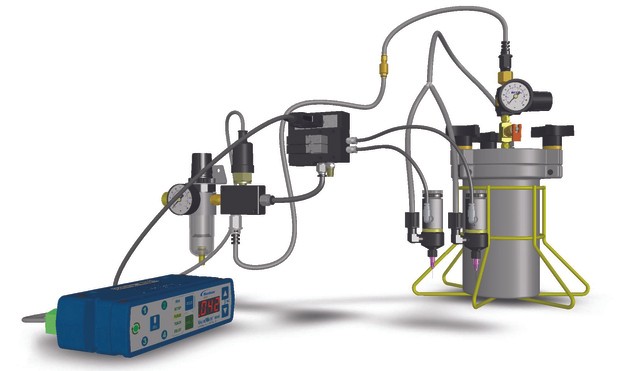

The complete system includes the 752V Series valve, ValveMate™ 8000 controller, fluid reservoir, and dispense tip. Integrate with an EFD automated dispensing system for even faster throughput.
DATA SHEET
