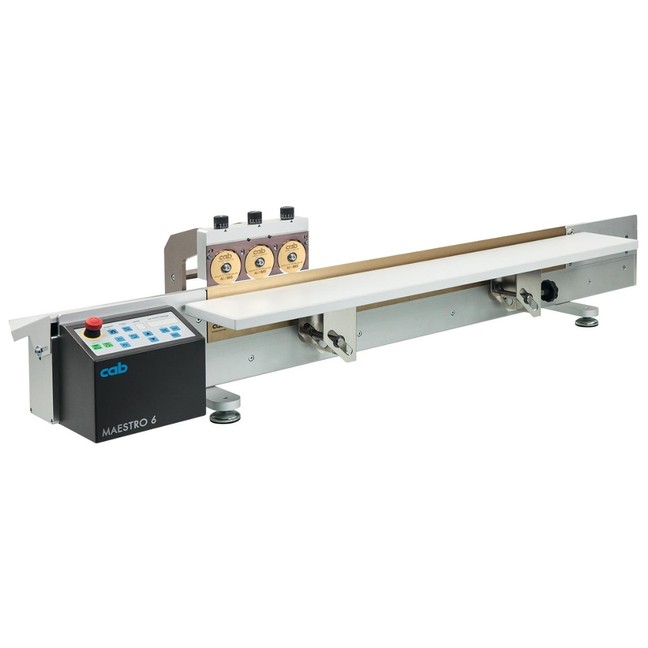

Separation of milled PCBs up to a length of 1,500 mm with a minimum of stress on the components
The MAESTRO 6 is the consequent further development of the proven cab PCB separators. Even very lengthy PCBs can be separated fast, economical and without stress.
The carriage power unit is assembled behind the linear blade. This crucially simplifies the separation and removal of the PCBs.
Dial gauge
In order to separate without stress and to achieve a long service life, the circular and linear blades have to be guided along the entire separation. The dial gauge setting and regularly checking the parallelism is assembled to the carriage.
In order to separate without stress and to achieve a long service life, the circular and linear blades have to be guided along the entire separation. The dial gauge setting and regularly checking the parallelism is assembled to the carriage.

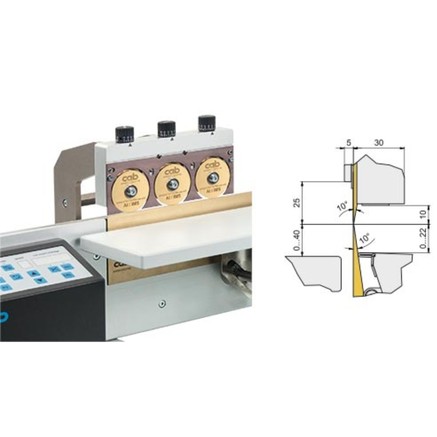

MAESTRO 6/X03
Separation of FR4, CEM3 and aluminum PCBs up to lengths of 1,500 mm Simple and quick change of FR4/CEM3 blades to aluminum blades or the other way round Height of circular blades to the linear blade to be set individually
Separation of FR4, CEM3 and aluminum PCBs up to lengths of 1,500 mm Simple and quick change of FR4/CEM3 blades to aluminum blades or the other way round Height of circular blades to the linear blade to be set individually

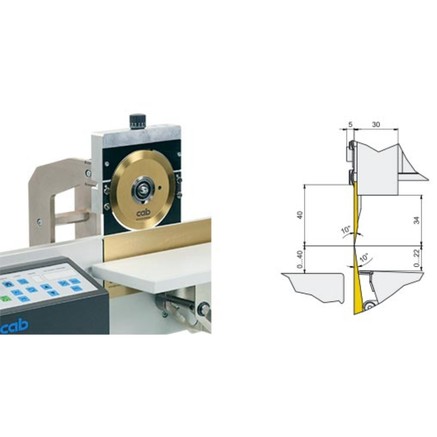

MAESTRO 6/X01
Separation of FR4 and CEM3 PCBs up to lengths of 900 mm; further lengths on request
Separation of FR4 and CEM3 PCBs up to lengths of 900 mm; further lengths on request

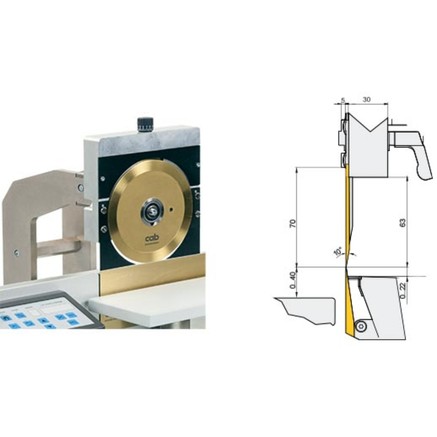

MAESTRO 6/601.70
Separation of FR4 and CEM3 PCBs up to lengths of 600 mm and component heights of 70 mm; further lengths on request
Separation of FR4 and CEM3 PCBs up to lengths of 600 mm and component heights of 70 mm; further lengths on request
| Overall technical data | |
|---|---|
| Separation method | Component side Circular blade Solder side Linear blade |
| Operation | path-optimized |
| Separation speed | up to 500 mm/s up to 250 mm/s with aluminum |
| Support table depth | 160 mm |
| Operation panel | |
| Control buttons | - Home / Position - Carriage moving to and fro |
| Programming buttons | - Carriage start / stop position - Carriage moving to and fro with or without interruption - Separation speed - "Number of cuts" or "Separation length" selection - Deletion of selection - Conveyor belt activation - Belt speed |
| Power switcher | ON / OFF |
| Foot switch | START separation |
| Safety switch | E-stop |
| Power supply | 100 - 240 VAC, 50/60 Hz |
| Emmission sound pressure level | LpA <70 dB (A) |
| Temperature / humidity: Operation : Stock : Transport | +5 - 40° C / 10-85 % not condensing 0 - 60° C / 20-80 % not condensing - 25 - 60° C / 20-80 % not condensing |
| Approvals | CE, FCC Class A |
| Technical data | 6/603 | 6/903 | 6/1203 | 6/1503 |
|---|---|---|---|---|
| Circular blade | diameter 60 mm | |||
| Separation speed | up to 500 mm/s up to 250 mm/s with aluminum | |||
| Materials | FR4, CEM3, aluminum | |||
| Seperation length | up to 600 mm | up to 900 mm | up to 1,200 mm | up to 1,500 mm |
| Component height | Component side up to 10 mm Solder side up to 22 mm | |||
| Width | 1,150 mm | 1,450 mm | 1,750 mm | 2,050 mm |
| Height x Depth | 350 x 450 mm | |||
| Weight | 50 kg | 55 kg | 60 kg | 65 kg |
| Technical data | 6/601 | 6/901 |
|---|---|---|
| Circular blade | diameter 125 mm | |
| Separation speed | up to 500 mm/s | |
| Materials | FR4, CEM3 | |
| Component height | Component side up to 34 mm Solder side up to 22 mm | |
| Seperation length | up to 600 mm | up to 900 mm |
| Width x Height x Depth | 1,150 x 410 x 450 mm | 1,450 x 410 x 450 mm |
| Weight | 50 kg | 55 kg |
| Technical data | 6/601.70 |
|---|---|
| Circular blade | diameter 185 mm |
| Separation speed | up to 500 mm/s |
| Materials | FR4, CEM3 |
| Component height | Component side up to 63 mm Solder side up to 22 mm |
| Seperation length | up to 600 mm |
| Width x Height x Depth | 1,150 x 410 x 450 mm |
| Weight | 50 kg |
