FINECUT 32F-200 MODEL / 32F-300 MODEL

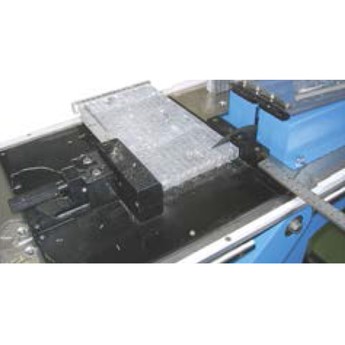

Long stroke cutting is possible by clamping the board material such as FRP, carbon fiber, and glass/ceramics, in the vertical direction. We will separately manufacture and install clamp jigs etc. that are suitable for your work.

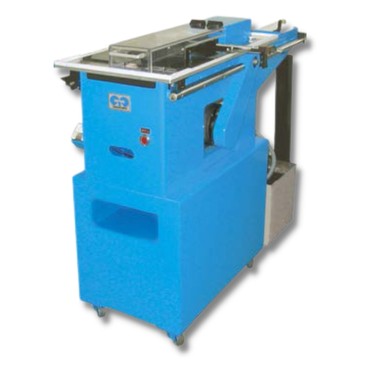

32F-200 Model

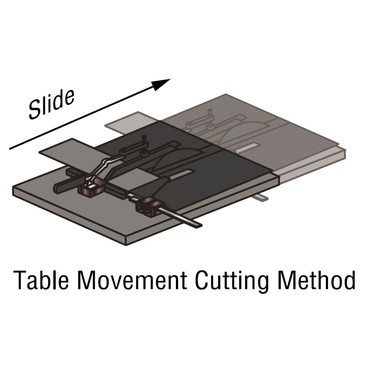

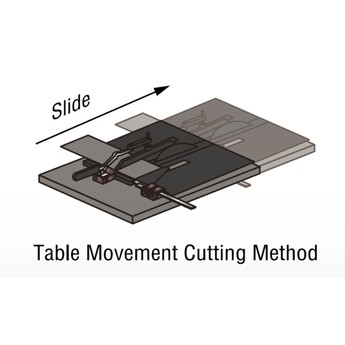

Cutting Method

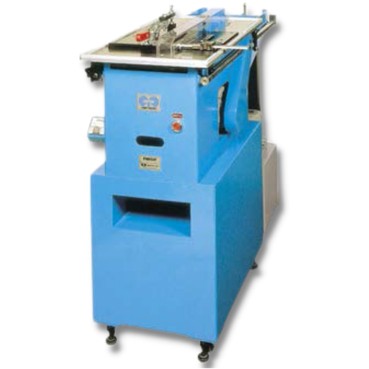

Note: Photographed without the clear cover

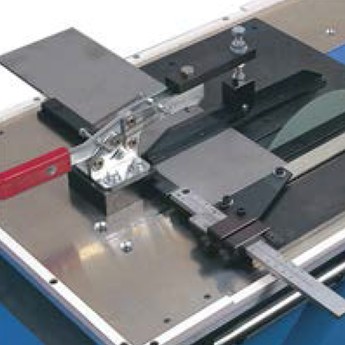

Two types of scale units, one for bars and the other for plates, are provided as standard equipment. Measurement cutting is available for long materials or plates of a cut size of up to 150mm.

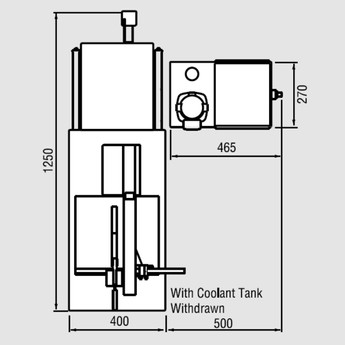

Required floor area

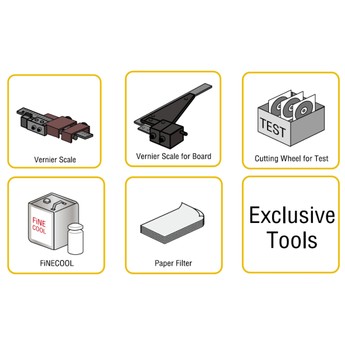

Standard Specification / Included Items
Standard cutting capacity Slide table travel Automatic cutting, Return speeds Clamping method Jaw opening size Diameter of cutting wheel Diameter of flange Diameter of spindle, (spindle) revolutions per minute Spindle motor Coolant pump, Tank Dimensions (W x L x H) Machine weight Accessories | ○□pipe 30mm, ●■solid bar 25mm, plate 10mm x 200mm (T x W) 400mm in cutting direction (manual) - Double clamp 0-200mm φ205mm/φ25.4mm φ80mm φ25.4mm, 2500/3000rpm (50/60Hz) AV200V・3 phase・4P・0.75kW AV200V・3 phase・40W, 30liters 510mm x 1250mm x 980mm 143kg 1 set of cutting wheels for testing, FINECOOL, and 1 set of Paper Filters |
Cutting Method
Required floor area

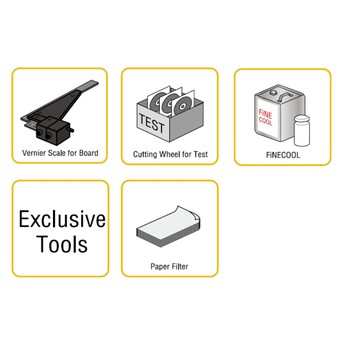

Standard Specification/Included Items
Standard cutting capacity Slide table travel Automatic cutting, Return speeds Clamping method Jaw opening size Diameter of cutting wheel Diameter of flange Diameter of spindle, (spindle) revolutions per minute Spindle motor Coolant pump, Tank Dimensions (W x L x H) Machine weight Accessories | plate 10mm x 300mm (T x W) 400mm in cutting direction (manual) - Toggle clamp - φ205mm/φ25.4mm - φ25.4mm, 2500/3000rpm (50/60Hz) AV200V・3 phase・4P・0.75kW AV200V・3 phase・40W, 30liters 510mm x 1250mm x 1010mm 137kg 1 set of cutting wheels for testing, FINECOOL, and 1 set of Paper Filters |
