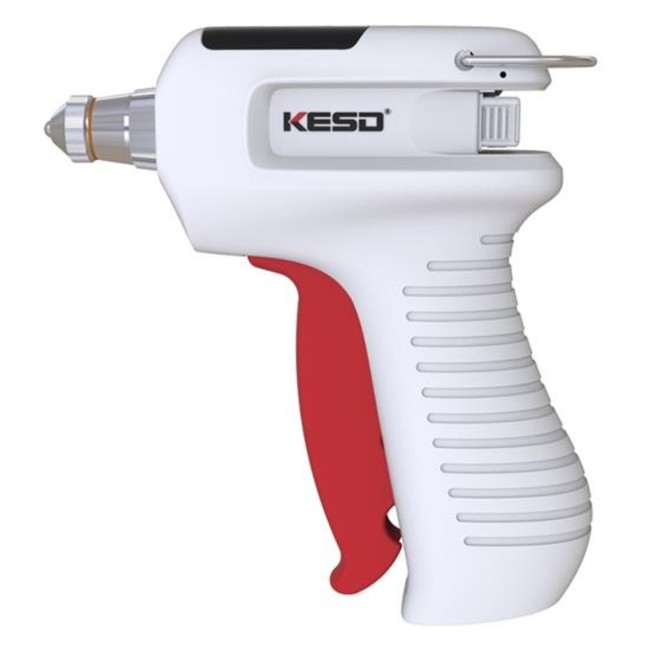

Ionizing Air Gun Compressed Air Gun Anti Static Ionizer KG-5

241

1. Small size, light weight, flexible and safety for handle

2. Can remove the electrostatic from point to wide range

3. Adopt high frequency AC type

4. Built-in high voltage system, automatic ion balance 0+ 15V

5. Filter fixed inside, increase the clean rate of compressed air and decrease the voice

6. Piston design of the air flue, huge volume enable short dำcay time

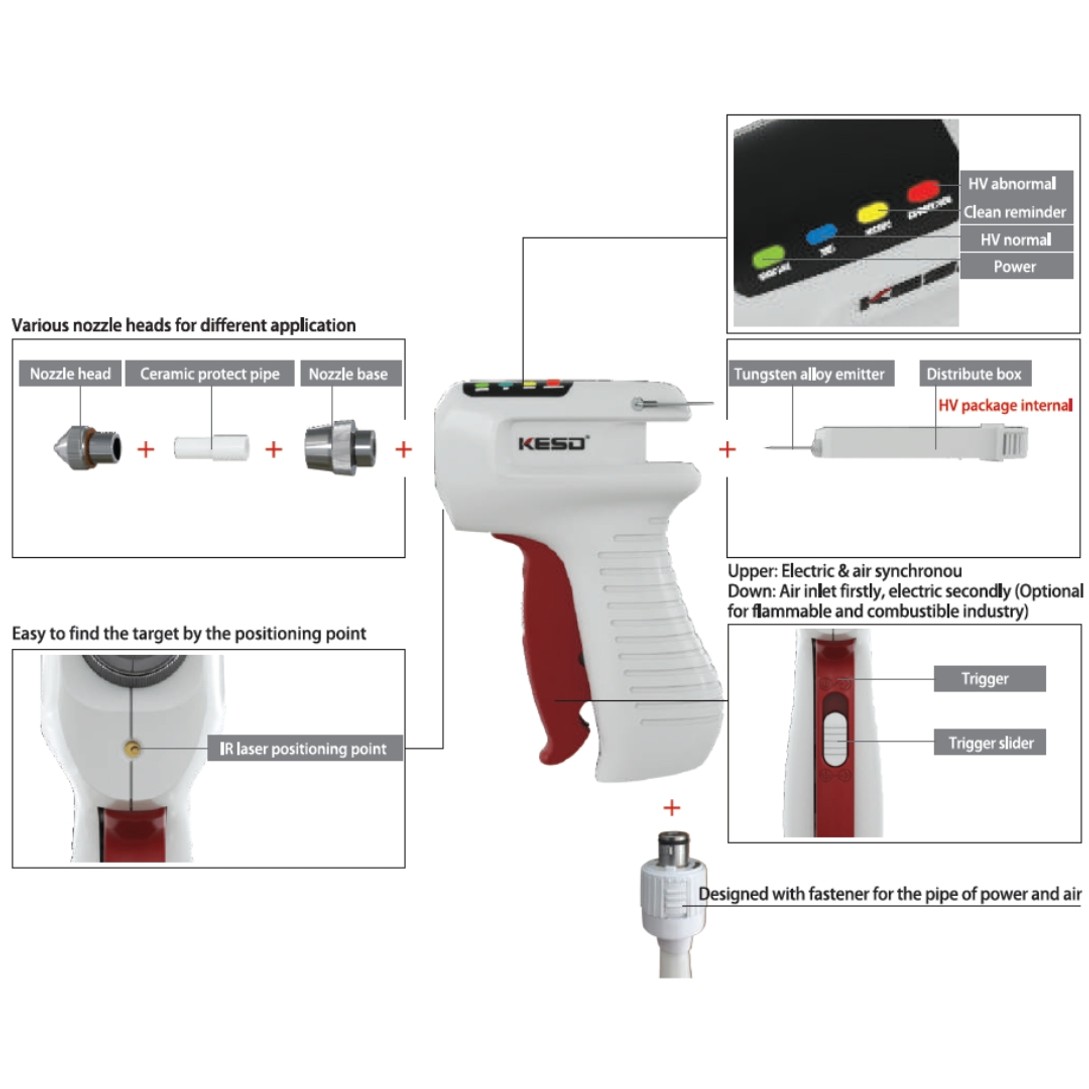

7. Different nozzle heads for various application

8. Trigger Arc design in accordance with ergonomics, convenient for operation

9. "Electric &air synchronous" and "Airinlet firstly,electric secondly" shift by sliding the trigger

FEATURES

1. Light gun body and ergonomic desing make it more comforttable, avoid operation fatigue and increase paoductivity

2. Shockess desing, can remove the electrostatic from point to wide range

3. Filter fixed inside,increase the clean rate of compressed air and decrease the voice

4. The gas volume regulating valve meets the gas outlet requirements of individual applications, different nozzle heads for various application.

5. Piston desing of the air flue,huge volume enable short decay time.

6. High voltage Linear transmission,dicharge efficiency increased by 15%.

7. Fast static elimination, easy to clean tiny sensitive parts & materials.

8. High voltage output display,determine the target in electrostatic control, clean the dust at the mean time os static removing.

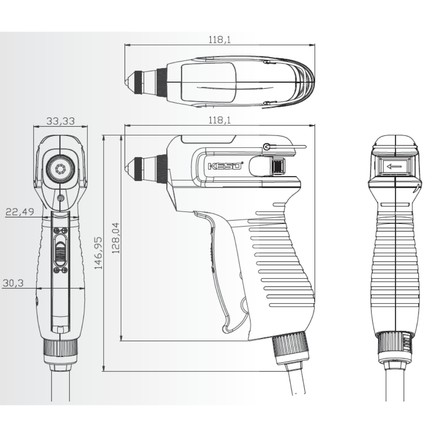

Appearance drawing

246

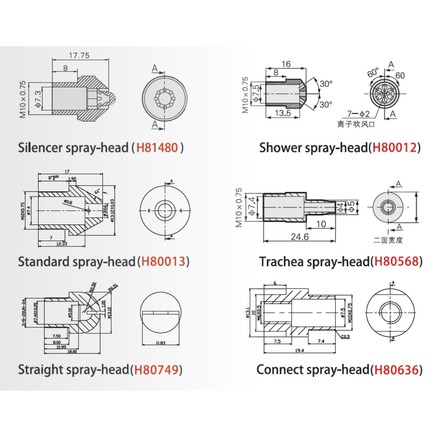

Nozzle heads for optional

247

WEBMENU(2)

250

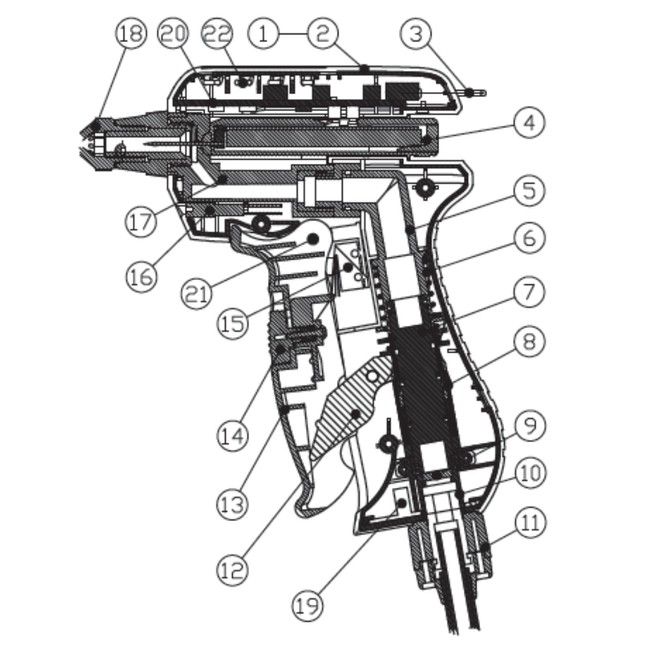

1.Left housing ABS

2.Right housing ABS

3.Hanger

4.HV Box

5.L type air flue (Fireproof ABS)

6.Spring

7.Straight air flue (Fireproof ABS)

8.Air flue stop valve

9.Anechoic block

10.Air terminal

11.Electric and air cinnecter

12.C type latch

13.Trigger

14.Electric & air control switch ABS

15.Inching switch

16.Laser head

17.Inlet air base

18.Spray head

19.Body power board PCBA

20.HV control boad PCBA

21.Trigger fulcrum

22.Functional indicator display

1694677109029

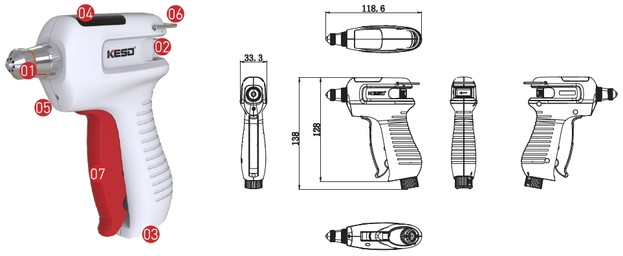

1. Spray head - Different spray heads optional (refer to nozzle head specification)
2. High voltage module - Spray needle/high voltage generator(refer to nozzle specification)
3. Power - Fastener equipped on the connector which is not easy to break off.
4. Indicator - Power indicator H.V normal indicator Clean reminder H.V alarm.
5. Infrared laser - Easy to find the positioning of the object.
6. Pothook
7. Trigger - Press the trigger to release ions.
