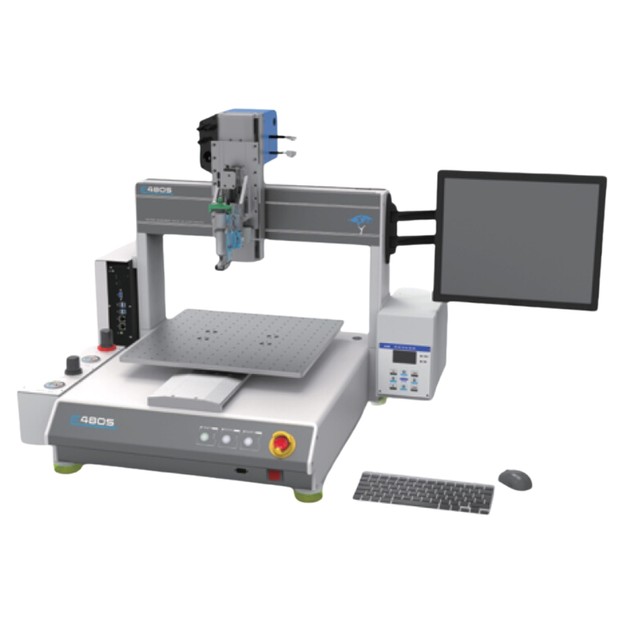

Automated desktop non-contact piezo electric jetting valve dispenser
SEC-E480SV
Applications
The desktop machines are widely used in communications, electronics, and PCB industries
- Fixing and protection of PCB electronc parts
- Mobile Phone / Notebook shell bonding
- LCD glass / LED dispensing
- Optical lens dispensing and packaging
- Auto parts
- Hardware parts and adhesive dispensing
Features
1. Smaller size, larger stroke
One-picec casting, strong structure, stable operation
2. Servo motor plus precision grinding screw drive operation
Speed block, high precision, large load, The size remains the same but the stroke increases by 20-25%, making it more compatible
3. Abundant product categories
Single platform and duak platform are optional to meet the application of different scenarios
4. The platform has more advanced and powerful functions
Which can be equipped with functions such as visual positioning, automatic calibration, glue dispensing detection, laser height measurement and compensation, product information scanning MES system docking, etc. to meet the use of various industries and multiple scenarios
5. Equipped with a high-precision piezoelectric valve
The applicable viscosity range is 1-200000cps, the minimum dispensing volume can be accurate to 0.1nl, and the minimum dispensing strip width is 0.2mm
Technical Specification
| Model | SEC-E480SV |
| Working Range | 480(X)*480(Y)*100(Z)mm |
| Machine Dimension | L620*W720*H702mm |
| Max Payload Y/Z | 20kg / 10kg |
| Max.traveling Speed | 800mm/sec(XY) / 200mm/sec(Z) |
| Transporting Axis | Servo motor, lead-screw + precision linear guide |
| Repeataccuracy | +0.015mm |
| Resolution | 0.01mm |
| Operating System | windows 7/10 |
| Light Cource | LED red, blue, white coaxial light source (standard white light source) |
| Dispensing Valve | Non contact piezo electric jetting valve |
| Power Supply | AC220 50/60HZ 1.6KW |
| Working Environment | Temperature : 0.40 °C , humidity : 20-90% |
| Machine Weight | 80KG (est.) |
