SRM200 is a very useful instrument for checking surface resistance and resistance to ground. The instrument can be used on different work.
A useful instrument for checking surface resistance and resistance to ground.The SRM200 meter can be used measure work surfaces, floors, chairs, carts, clothing, packaging materials, etc. The measured value is shown on an LCD display that indicates whether the value is conductive, dissipative, or insulative. The SRM200 also has an integrated temperature and humidity sensor. The measured values are shown on the LCD display, stored on the meter and downloaded to computer. The measurements can be performed either with the built-in measurement electrodes on the underside of the instrument or with optional measuring electrodes.

Features

• Digital LCD Screen
• Results are Stored and Downloadable via Computer

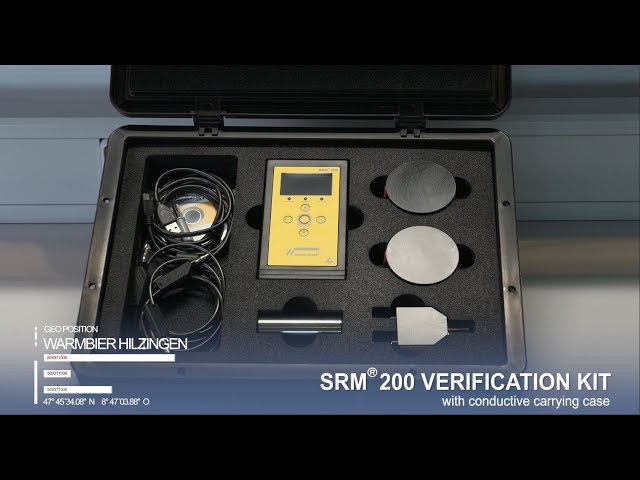

• Conductive carrying case included
• External Probe Connection Possible

Applications

• Suitable for factory audits and material evaluations. Measures resistance-point-topoint (RTT) and resistance-to-ground (RTG).

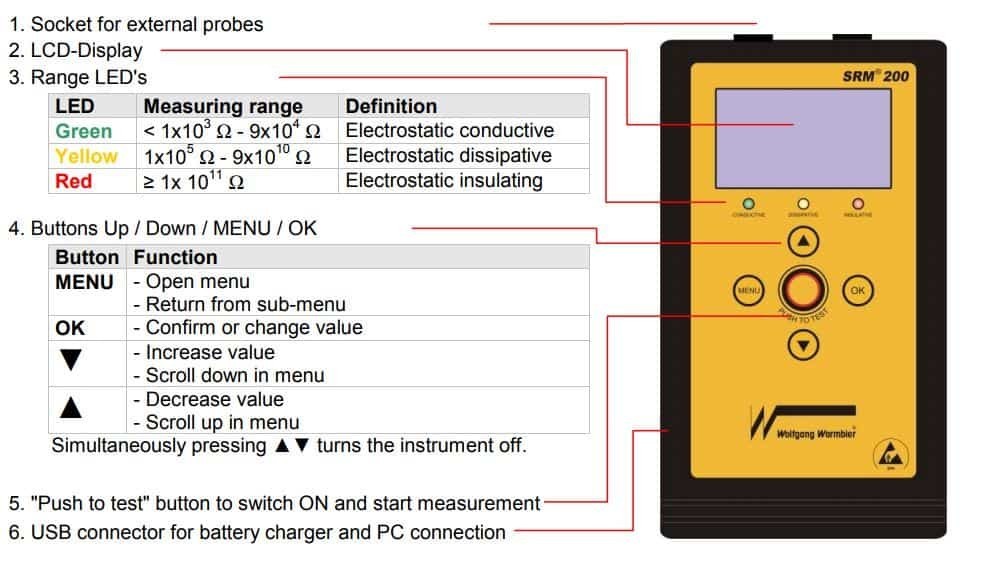

Operation Description
