Standard Cutting Ability

Cutting Wheel Effective Use Cost

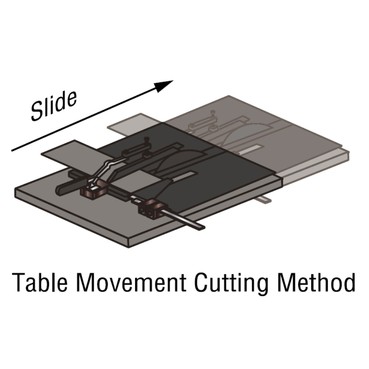

Slide Table Movement

Automatic Cutting/Return Speed

Work Clamp Method

Cutting Wheel Diameter

Cutting Wheel Fringe Diameter

Main Shaft Rotations

Main Shaft Power

Coolant Pump/Tank

Machine Size

Machine Weight

Electrical Capacity

Noise

■Board Materials 5 mm x 250 mm (Thickness x Width)

38.0 mm

Cutting Direction 400 mm (manual/automatic exchangeable)

Cutting (stepless speed change) 6 - 100 mm/min, Return (fixed): 100 mm/min

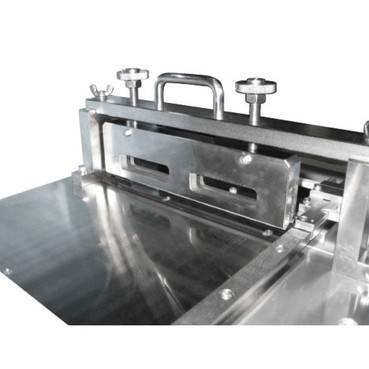

Gate-Type Clamp 2-point Screw Vertical Movement Style

φ205 x 0.7 - 1.0 x 25.4 mm (Outer Diameter x Thickness x Inner Diameter)

φ80 mm

2500/3000rpm (50/60Hz)

AC200V/3-Phase/4P/0.75kW

AC200V/3-Phase/40W/30 liters

660 mm x 1230 mm x 1250 mm (Width x Depth x Height)

180kg

1.5KVA

64db (during idle)
