OLAMEF
TP6/PR-B
CUTTING BENDING
FORMING MACHINE FOR
AXIAL COMPONENTS
STANIDARD LEAD Ø :1-1,3
40.OL21 Z 3,1
40.OL31 Z 3,9
40.OL24 Z5
REINFORCED LEAD Ø : 1-1,3
40.OL22 Z 3,1
40.OL32 Z 3,9
40.OL25 Z5

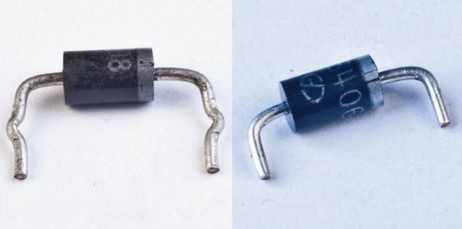

The model TP6/PR-B is designed for cutting forming and bending taped axial components. The “stand-off” form keeps the body off the P. C. Board. The machine handles components with lead diameter from 1 to 1,4 mm (.039 to .055”). It can be motorized. With TP6/PR-B it is possible to exclude the kink substituting the cutting/forming wheels with only cutting wheels.

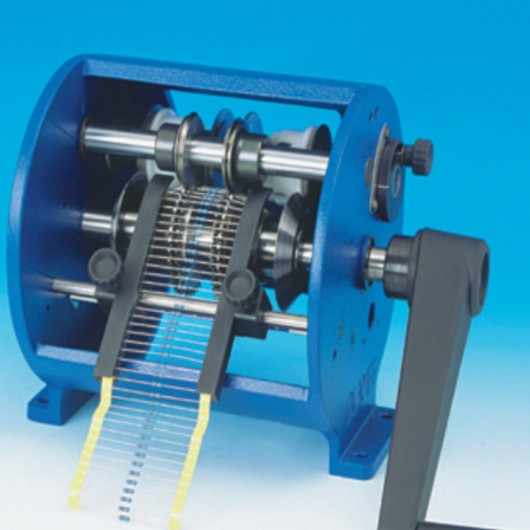

TP6/PR-B/97
CUTTING BENDING
FORMING MACHINE FOR
AXIAL COMPONENTS
STANDARD LEAD Ø : 1-1,3
40.OL21/97 Z 3,1
40.OL31/97 Z 3,9
40.OL24/97 Z 5
REINFORCED LEAD Ø : 1 : 1-1,4
40.OL22/97 Z 3,1
40.OL32/97 Z 3,9
40.OL25/97 Z 5

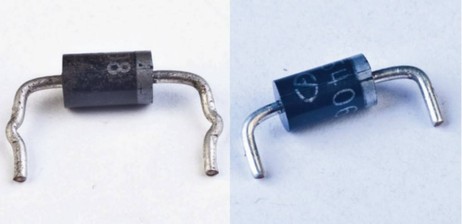

The model TP6/PR-B/97 is designed for cutting forming and bending taped axial components. The “stand-off” form keeps the body off the P. C. Board. The machine handles components with lead diameter from 1 to 1,4 mm (.039 to .055”). It can be motorized. With TP6/PRB/97 it is possible to exclude the kink substituting the cutting/forming wheels with only cutting wheels. Easy to set up and use. This system automatically adjusts the bending wheels, reducing the set-up time and making it easier. This system is available with all versions of TP6/PR-B machine.
Warning= the maximum pitch possible with the /97 system is 40mm. and the maximum “B” is 10mm.
