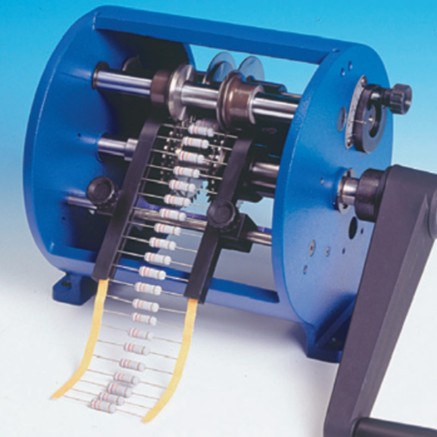

TP6
CUTTING AND BENDING MACHINE
FOR AXIAL COMPONENTS
20.OL01 STANDARD LEAD Ø : 0,4 -1,2
20.OL04 REINFORCED LEAD Ø : 0,6 - 1,4
20.OL06 REDUCED LEAD Ø : 0,4 - 0,8
20.OL07/9/10 REDUCED AND FIX PITCH LEAD Ø : 0,4 - 0,6
20.OL0130 STRAIGHT CUT

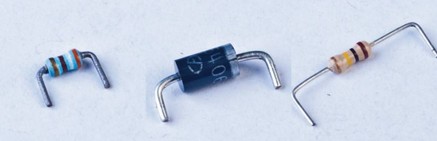

The model TP6 is designed for cutting and bending taped axial
components with lead diameter from 0,4 to 1,4mm (.015 to
.055”). The high quality and reliability of this machine ensure the
best operation for a very long time. No maintenance is required.

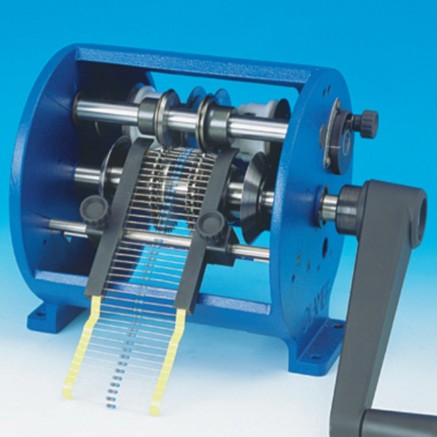

TP6/D
CUTTING AND BENDING MACHINE FOR AXIAL COMPONENTS WITH DELRIN TOOTHED DISCS NOT TO MARK LEADS
20.OL11 STANDARD
20.OL12 REINFORCED
Minimum cutting lenght “B” =4,6mm and maximum lead “d” =0,8mm

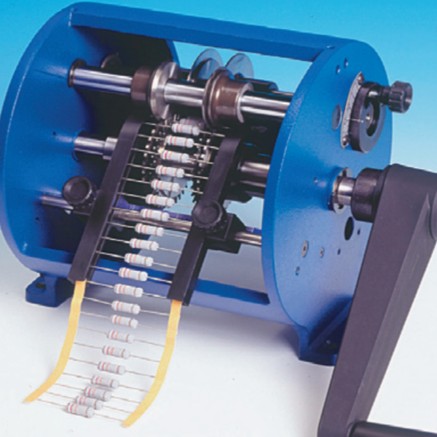

TP6/97
CUTTING AND BENDING MACHINE FOR AXIAL COMPONENTS WITH QUICK SET UP
20.OL01/97 STANDARD
20.OL04/97 REINFORCED
20.OL06/97 REDUCED
This system automatically adjusts the bending wheels, reducing the
set-up time and making it easier.
This system is available with the some versions of the TP6 machine.
Warning= the maximum pitch possible with the /97 system is 40
mm and the maximum “B” is 10 mm
