725D Piston Valves

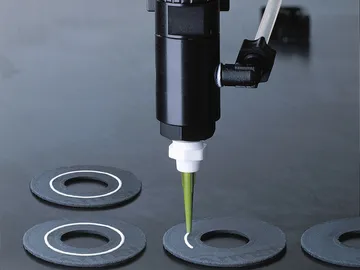

The 725D Series piston valve delivers consistent, precise deposits of viscous fluids. Its unique diaphragm isolates wetted components from the actuator, providing superior wear resistance.
Overview
Ideal for use with a variety of medium-to-thick fluids, the 725D pneumatic valve’s rugged construction features an ultra-high molecular weight (UHMW) polyethylene diaphragm that isolates the wetted components from the actuator and provides long wear. A slight snuff-back at the end of the valve dispensing cycle prevents dripping between shots. All models feature the ability to be mounted in any position. The 725DA-SS model provides stroke adjustment for both fluid flow and snuff-back control. The 725D-SS model is non-adjustable with fixed stroke travel.
Valve Systems & Controllers
Engineered for the most demanding manufacturing environments
Nordson EFD valve systems are proven to provide precise, reliable fluid dispensing control for tens of millions of trouble-free cycles before maintenance is required.
The Complete Valve System

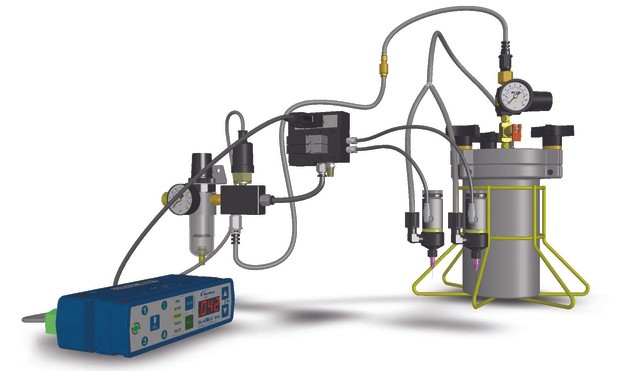

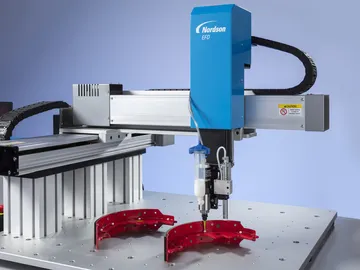

The complete system includes the 725D Series valve, ValveMate™ 8000 controller, fluid reservoir, and dispense tip. Integrate with an EFD automated dispensing system for even faster throughput.
DATA SHEET
z-z367298796555.png)
725D Piston Valves
