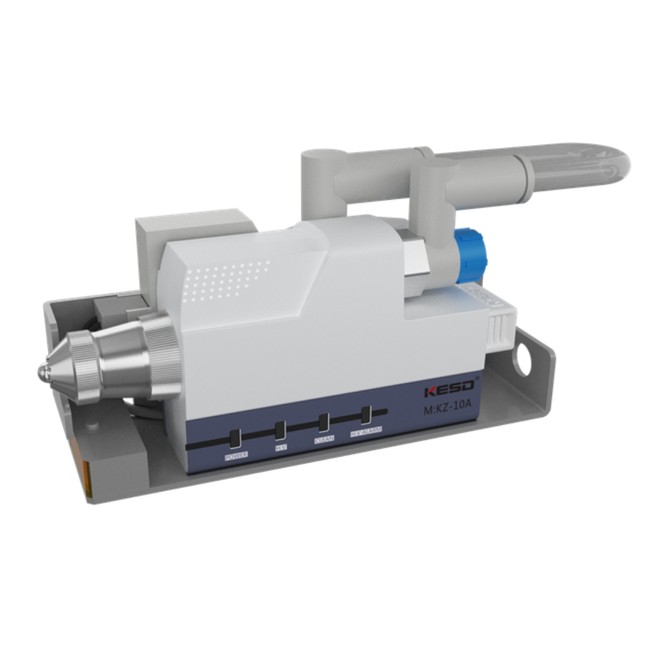

KZ-10A-SY-HPJ

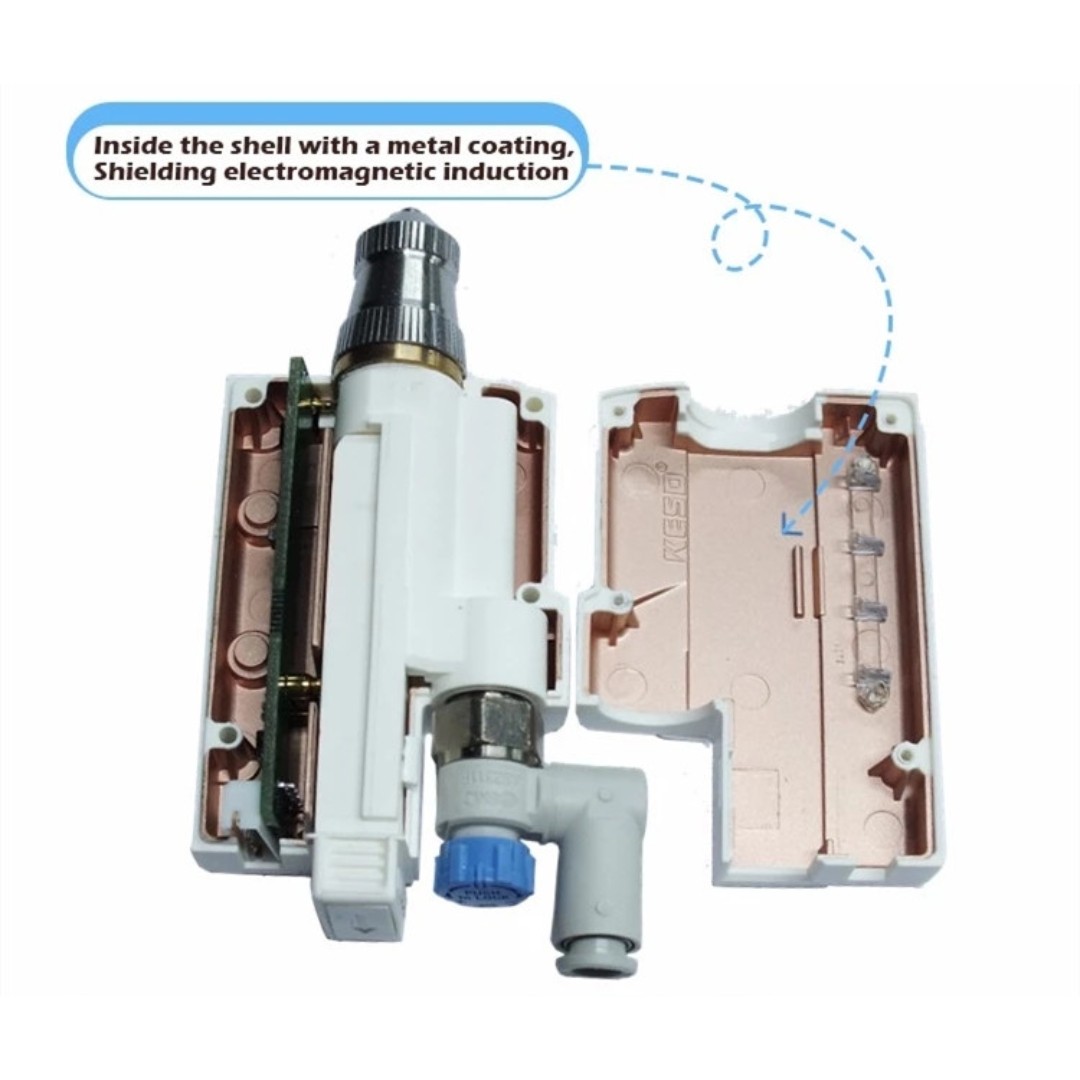

KZ-10A-SY-HPJ Auto Sensing Ion nozzle is a fixed static elimination of special equipment. It is the use of compressed gas series in addition to a static product. With easy installation, stable work, strong wind speed, the characteristics of the rapid elimination of static electricity.
1.Auto ion balance system,Ion balance can be achieved within 0±10V.
2.Built-in high pressure system, small volume, Use safer and more convenient.
3.With destaticizing abnormal indicator light and High voltage operation abnormal indicator light.
4.With Tungsten alloy spray point,long time to use and not easy to wear and tear.
5.Metal spray paint in dand outside.
6.Choose proper nozzle according to destaticizing requirement,geting twofold results with half the effort.Also can make the design fit for the nozzle in customer’s site according to customer requirement and application situation.
Technical Parameters
| Product Model | KZ-10A-SY-HPJ |
| Input power supply voltage | 2200V |
| LED indication Destaticizing normal operation indicator light | If destaticzing operation is normal the green indicator light |
| LED indication Destaticizing abnormal indicator light | If destaticizing operation is abnormal the red indicator light |
| Airflow applied | Air (clean air containing no water oe oil) |
| Air pressure application range | 0.05-0.5 Mpa |
| Applied environment temperature | 0-40℃ (no condensation) |
| Applied environment humidity | 30-70% RH (no water drop condensation) |
| Ion generating way | High frequency AC corona discharge mode |
| Ion balance | Automatic ion balance system 0±10V |
| Ozone concentration | Below 0.03 ppm (distance 200 mm) |
| Tubing connecting calibre | Ø6 windpipe |
| Size (mm) | 104.5 x 56.5 x 22 |
| Weight (kg) | 0.09 |
| Filter precision | 0.1μm |
| Filter efficiency | 99.9% |

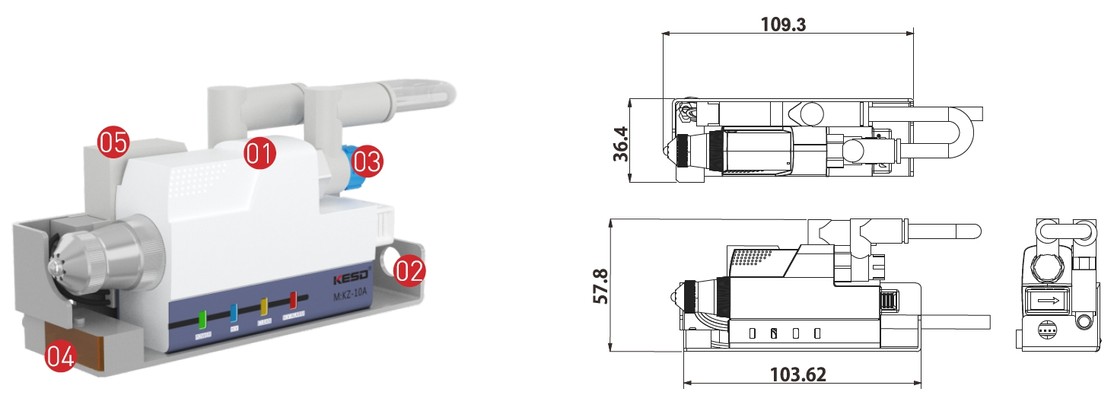

01 Composed of KZ-10A and the sensor
Parameters refer to KZ-10C or KZ-10A.
02 Stand of KZ-10A
To fix KZ-10A with photoelectric sensor.
03 Connection of air
04 Photoelectric sensor
Adjustable for sensing distance : ≤300mm
05 Electromagnetic valve
After the photoelectric sensor senses the product the solenoid valve automatically turns on with ion generated and air ventilated at the same time.
