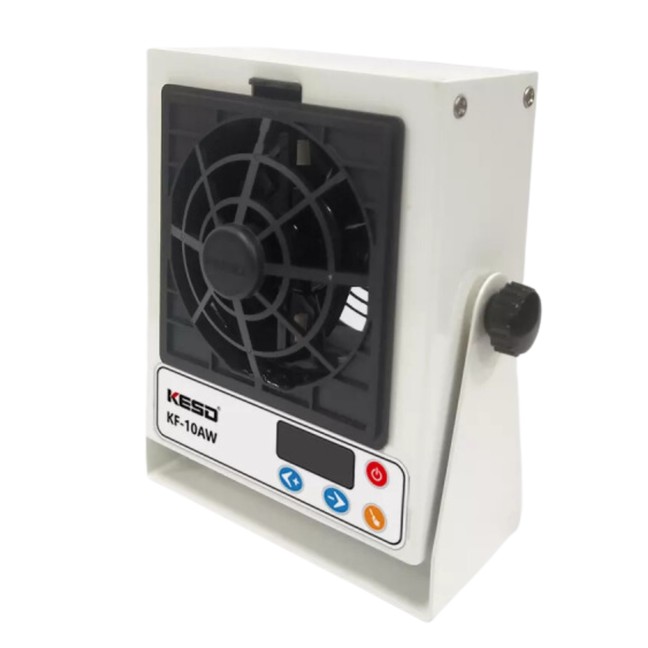

High Frequency Ionizing Air Blower KF-10AW Static Elimination
KF-10AW
Features
1. Auto clean for the discharge needle.
2. Seven segment air volume switch.
3. Shell electrostatic spraying treatment.
4. Lock function for entire machine.
5. Fan abnormal alarm.
6. High Voltage alarm.
7. Set the status display window.
8. Function setting.
1. Auto clean for the discharge needle.
2. Seven segment air volume switch.
3. Shell electrostatic spraying treatment.
4. Lock function for entire machine.
5. Fan abnormal alarm.
6. High Voltage alarm.
7. Set the status display window.
8. Function setting.

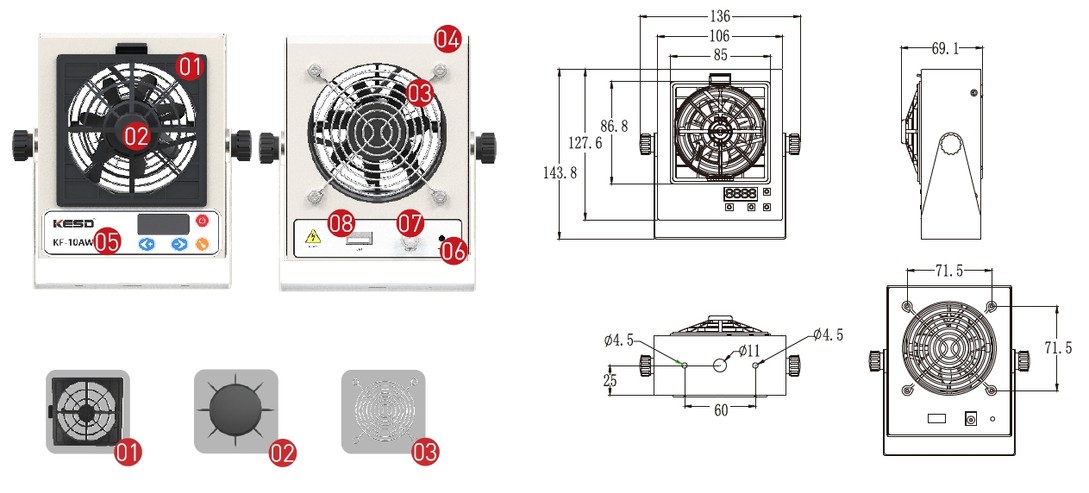

External View
Specification
| Product Model | KF-10AW |
| Input power supply voltage | DC24V |
| LED indicator / Destaticizing normal operation indicator | If destaticizing operation is normal, the green indicator light is on. |
| LED indicator / Destaticzing abnormal indicator | If destaticizing operation is abnormal, the red indicator light is on. |
| Decay time | About 2s (200m) |
| Ion balance | Automatic ion balabce system 0±15V |
| Air volume | 0.82 - 1.21 m3 / min (constant air flow) |
| Ozone concentration | Below 0.03ppm (distance 150mm) |
| Environment temperature | 0°C-40°C (no condensation) |
| Environment humidity | 30-70%RH (no water drop condensation) |
| Overall size/mm | 106x69.1x125 (excluding bracket) |
01 Front window (KF-10A-BH)
Use a liner grid type air window to concentrate the blow wind and enhance the static elimination effecr and can be flexibly disassembled for easy maintenance.
Accessory can be purchased separately.
02 Discharge needle (KF-10A-Z2)
Discharge needle parts can be disassembled for replacement and maintenance,Cleaning or maintenance
Use a liner grid type air window to concentrate the blow wind and enhance the static elimination effecr and can be flexibly disassembled for easy maintenance.
Accessory can be purchased separately.
02 Discharge needle (KF-10A-Z2)
Discharge needle parts can be disassembled for replacement and maintenance,Cleaning or maintenance
03 Metal window mesh (80x80mm)
Accessory can be purchased separately.
04 Housing
The outer casing is made of stainless steel which is more suitable for use in clean rooms. (white powder coating)
Accessory can be purchased separately.
04 Housing
The outer casing is made of stainless steel which is more suitable for use in clean rooms. (white powder coating)
05 LED Indicator
Unique LED display for visual viewing the work status and management.
- H.V normal working condition
- H.V ALARM abnormal working condition
- FAN fan normal operating condition
- FAN ALARM fan abnormal operting condition
- -.....+ Air volume decrease increase buttin and air volume indicator
06 Grounding socket
07 Power socket
08 USB joggle
