OLAMEF
TP6/V/1
CUTTING BENDING MACHINE FOR AXIAL COMPONENTS VERTICAL MOUNTING

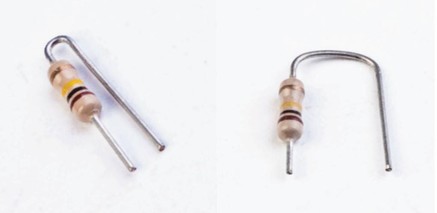

5794
80.OL01STANDARD

8

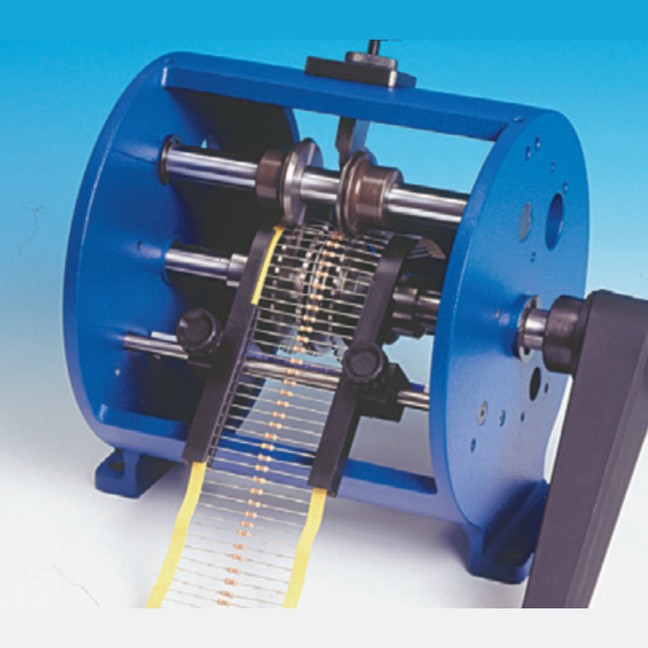

The TP6/V machine is designed for cutting and bending taped axial components for vertical mounting. It operates components with lead diameters from 0,5 to 0,8mm (.019 to .031”). The bending pitch is determined by the bending cam supplied and it can be changed by replacing this cam with one having different thickness.

WARNING: FOR PITCH 2,54 MM MINIMUM LENGTH BETWEEN BODY AND TAPE SHALL BE: LENGTH OF THE BODY PLUS 12 MM. THE LENGTH OF THE LEAD FOR THE LARGER PITCHES SHALL BE INCREASED BY RELATION

TP6/V/21
CUTTING BENDING MACHINE FOR AXIAL COMPONENTS VERTICAL MOUNTING

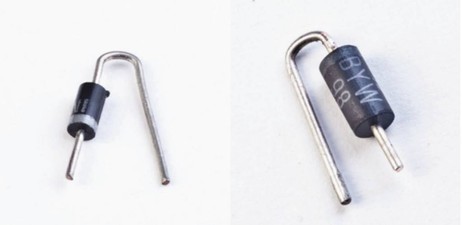

5827

80.OL21 REINFORCED

287

The TP6/V/21 machine is designed for cutting and bending taped axial components for vertical mounting. It operates components with lead diameters from 0,8 to 1,3mm (.031 to .051”). The bending pitch is determined by the bending cam supplied and it can be changed by replacing this cam with one having a different thickness.

WARNING: FOR PITCH 3,8 MM MINIMUM LENGTH BETWEEN BODY AND TAPE SHALL BE: LENGTH OF THE BODY PLUS 16 MM. THE LENGTH OF THE LEAD FOR THE LARGER PITCHES SHALL BE INCREASED BY RELATION
