OLAMEF

TP6/PR-F/1
CUTTING BENDING FORMING MACHINE FOR AXIAL COMPONENTS

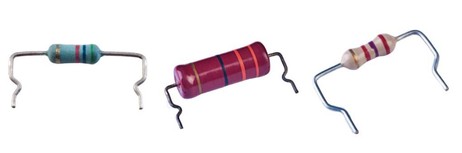

5623

43.OL01 STANDARD

2
The model TP6/PR-F is designed for cutting and forming axial taped components. Version 43.OL01 is suitable for lead Ø 0,5 to 0,9 mm (.19 to .035”). Die assemblies designed for each one of the version, need to be ordered separately depending on the form required. It is possible to order special forms, supplying Olamef with drawings and specifications. This high quality machine is designed and manufactured to last long time. Preforming operations are realized in order not to mark, scratch or deform leads. Machine’s adjustment takes advantage of ’97 system. It can be motorised. Waste tape ejector TNS is always already included with the machine’s price.

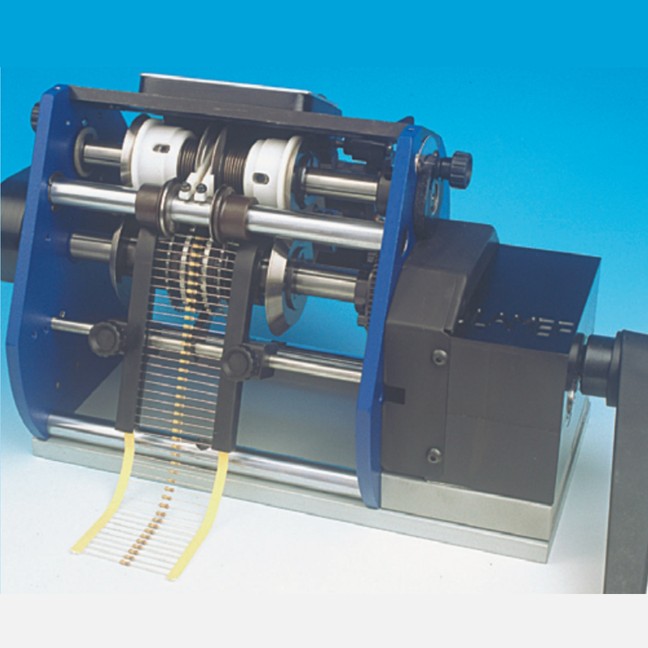

TP6/PR-F/2
CUTTING BENDING FORMING MACHINE FOR AXIAL COMPONENTS

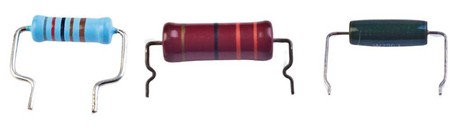

5627

43.0L02 REINFORCED

3
The model TP6/PR-F/2 is designed for cutting and forming axial taped components. Version 43.OL02 is suitable for lead Ø 0,8 to 1 mm (.031 to .039”). Die assemblies designed for each one of the version, need to be ordered separately depending on the form required. It is possible to order special forms,supplying Olamef with drawings and specifications. This high quality machine is designed and manufactured to last long time. Preforming operations are realized in order not to mark, scratch or deform leads. Machine’s adjustment takes advantage of ’97 system. It can be motorised. Waste tape ejector TNS is always already included with the machine’s price.

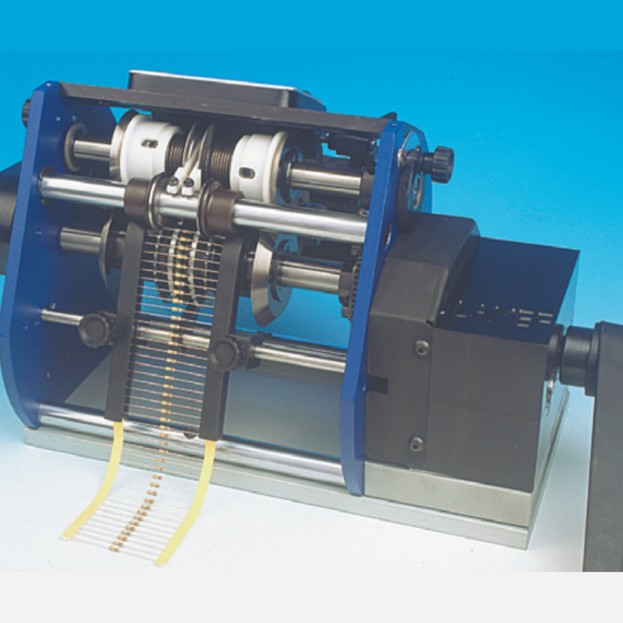

TP6/PR-F/3
CUTTING BENDING FORMING MACHINE FOR AXIAL COMPONENTS

5629

43.0L03 EXTRA REINFORCED

11

The model TP6/PR-F/3 is designed for cutting and forming axial taped components. Version 43.OL03 is suitable for lead Ø 1 to 1,3mm(.039 to .051”). Die assemblies designed for each one of the version, need to be ordered separately depending on the form required. It is possible to order special forms, supplying Olamef with drawings and specifications. This high quality machine is designed and manufactured to last long time. Preforming operations are realized in order not to mark, scratch or deform leads. It can be motorised. Waste tape ejector TNS is always already included with the machine’s price.
