Pulse AC Ionizing Air Bar Electrostatic Eliminator
KE-55H
Product Description
1. This product is a stationary type of static eliminator.
2. Light weight small size no EMI and safe in operation.
3. Adopt pulse AC type distribute positive and negative ions from the emitter needle by compressed air with superior performance in ion balance can realize static eliminate from point to big area.
1. This product is a stationary type of static eliminator.
2. Light weight small size no EMI and safe in operation.
3. Adopt pulse AC type distribute positive and negative ions from the emitter needle by compressed air with superior performance in ion balance can realize static eliminate from point to big area.
Product Features
1. Adopt high frequency AC type strong ion concentration ensure stable static elimination performance just need to clean the emitter in a certain time.
2. Adopt special shape of emitter reduce the consumption of oxygen.
3. Easy to load and unload of the emitter convenient for maintenance.
4. Auto ion balance system ≤10V.
5. Equip with HV normal indicator light.
6. High safety in operation
Technical Parameters
| Product Model | KE-55H |
| Input Voltage | DC24V±5% |
| Ion generated type | Pulse AC type |
| Indicator light H.V (Green) | HV normal |
| Voltage to be imposed | Pulse AC type/±7000V |
| Ion balance | ≤±10V |
| Decay time | 2.0S (Test distance 300mm) |
| Ozone generated (PPM) | ≤0.03PPM |
| Compressed air | Clean air (No water and oil) |
| Air pressure application range | 0.01 - 0.5 MPa |
| Applied environment temperature | Indoor 0-40°C |
| Applied environment humidity | 15%-75% Rh (No condensation) |

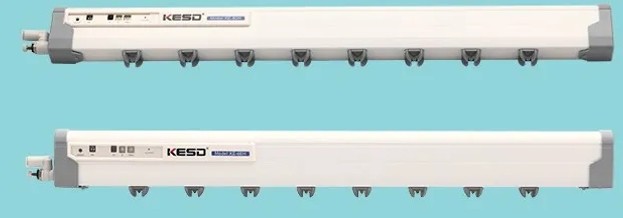

External View

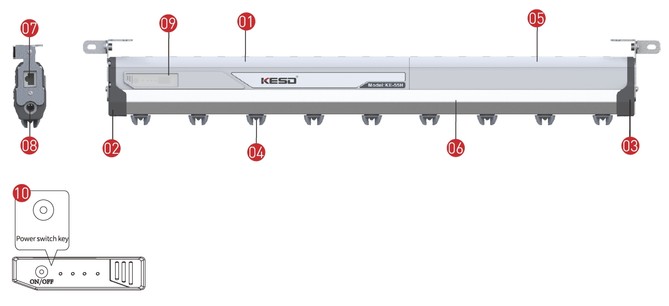

Details of pulse ionizing air bar KE-55H
01 Control part main body
02 Left side panel of shell
03 Shell right side panel
04 Nozzles (discharge pins)
05 Shell body
06 Aluminum alloy polar ring
07 Network cable interface (communication & DC24V)
08 Air intake
09 Slide cover (The cover plate structure is designed as a push-pull protection window)
10 Power switch key
01 Control part main body
02 Left side panel of shell
03 Shell right side panel
04 Nozzles (discharge pins)
05 Shell body
06 Aluminum alloy polar ring
07 Network cable interface (communication & DC24V)
08 Air intake
09 Slide cover (The cover plate structure is designed as a push-pull protection window)
10 Power switch key
