Flexible desoldering, placement and soldering of SMT components

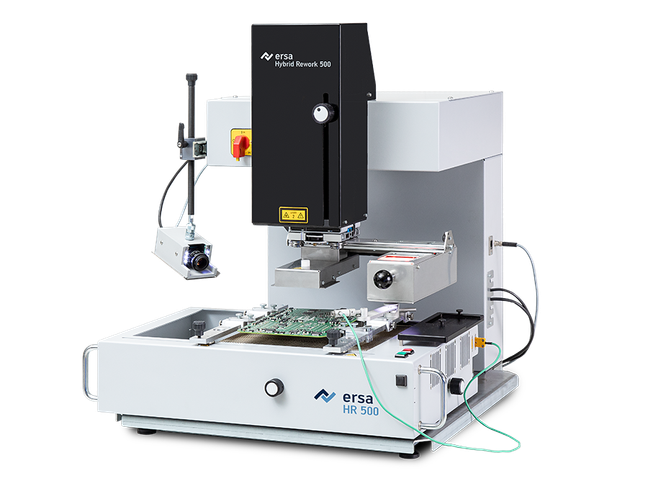

The HR 500 offers the full Ersa Hybrid Rework technology for budget-oriented users. The little brother of the HR 550 allows flexible repairs of standard assemblies up to 380 x 300 mm and 50 x 50 mm component size.
Technical highlights
- 900 W Hybrid high-performance heating element
- Full-area 1,600 W IR bottom heater
- High-resolution cameras for placement and process monitoring
- Ergonomically optimal system operation
- Modern, user-friendly operating software
Specifications
Ersa HR 500
Technical data
- Dimensions (W x D x H) in mm: 655 x 645 x 710
- Weight in kg: approx. 55
- Antistatic Design (y/n): yes
- Power Rating in W: 2,500
- Nominal voltage in V AC: 220 V - 240 VAC, 50-60 Hz, 16 A
- Upper heating Hybrid heater: 900 W, 70 x 70 mm
- Lower heating IR emitter: (2x 800 W), 270 x 270 mm
- Measuring channels: 2x K-Type
- Position laser: Class II
- PCB size in mm: up to 380 x 300 mm (+x)
- Component size in mm: from 1 x 1 up to 50 x 50
- Placement camera, upper: 5 MP GigE color camera, field of view 50 x 50 mm
- Usable working distance (typ.): 60 mm to top heater, 35 mm to bottom heater
- Test symbol: CE
- Operating software: HRSoft 2 - suitable for Windows 8 and Windows 10
- Option: Reflow process camera: 2,3 MP, CMOS GigE color camera, 25 mm focal length, illumination 2x LED, adjustable
