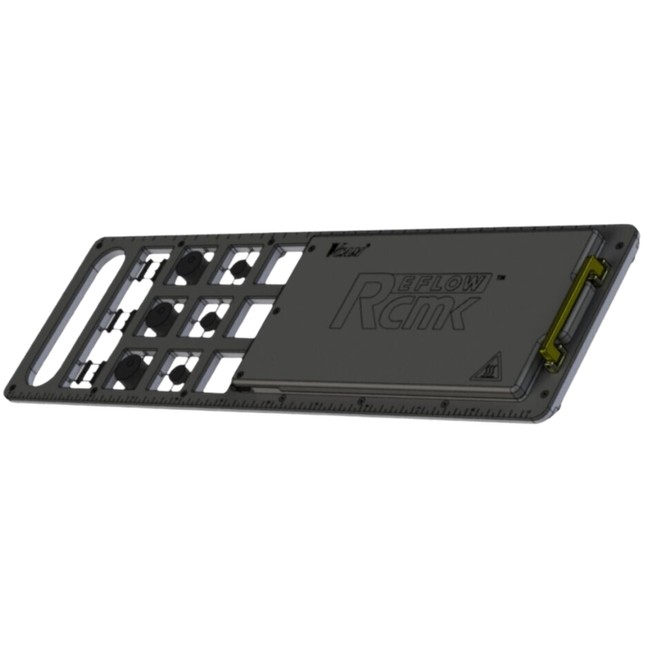

RCMK is a set of professional test kit for reflow oven in SMT industry. It is a special designed measurement tool, cooperate with iProfile 20 super data collector, it collects and measures data of each temperature zone and simulate heat absorption of various products through the reflow process. Comprehensive performance parameter index will be generated automatically via its ultimate analysis software. Calibration can be carried out by comparing the parameter analysis between the current reflow oven and the new reflow oven. It improves the reflow oven conditions in order to produce better quality products.
Identify and record the stability of the reflow oven
- Calculation of conveyor speed through recorded data
- Record 12 to 20 sets channels data (based on product size)
- Automatic identify the reflow zone and compare the data of various heat absorption modules
- Display the stablity of each reflow zone
- Justify each PCB process parameter if it is within the qualified range
Ultimate heat-resistant materials and hardware design
- Advanced temperature-resistant materials as carrier kit and it is repeatability up to thousand times
- Design incorporates environment, process parameter and reflow zone temperature sensors
- Hot wind sensors for independent measurement of different hot air frequencies
- High heat-resistant rechargeable battery, low battery consumption, it comes with LED screen
- The data collector can be separated from its carrier, which is convenient to customize carrier based on customer reflow oven
