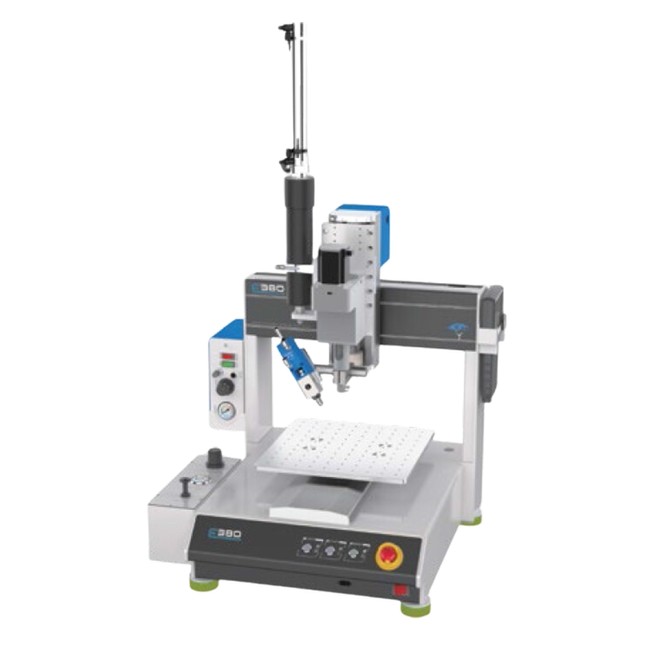

Automated desktop dispensing machine with pneumatic cylinder and 360-degree rotating valve
SEC-E380EDR
Applications
360-degree nozzle rotating desktop machines are widely used in communications, electronics and PCB industries
- PCB reinforcemet
- LCD sealing
- Coil dispensing
- Circuit components bonding
- Small transformers
- IC packaging/bonding
Features
1. Smaller machine size, larger stroke
One-piece casting, strong structure, stable operation
2. Advance transmission method of stepping motor and synchronous belts
Which has the advantages of lower cost and low noise
3. 360-degree rotating dispensing head
It can realize multi-angle, multi-directional and side and corner dispensing applications of special products
4. The machine can work with different dispensing applicators
Such as 300cc syringe, 300-330cc packaging glue 6-12oz glue cartridges + suck-back valve, needle valve, screw valve, as well as point and coating process applications
5. The material supply system can realize the synchronous feeding by air pressure or cylinder pressure
The glue supply pressure is large and can adapt to glue with a viscosity of 50000-200000cps
6. It can be equipped with hose swivel joint
The rotating nozzle system has hollow-shaft axis design, to avoid hose entanglement
Technical Specification
| Model | SEC-E380EDR |
| Working Range | 380(X)*380(Y)*100(Z)mm |
| Rotating Angle | 360° |
| Program Storage Capacity | 999parameter files (65535points per file) |
| Max Payload Y/Z | Y:7kg / Z:5kg |
| Dispensing Mode | 4-axis :point-to-point, continuous line, arc, 3D curve, etc. |
| Resolution | 0.01 mm |
| Repeat Accuracy | ±0.025 mm |
| Operating Method | LCD Panel / Handheld Programmer |
| Traveling Method | Stepper motor + Precision synchronous belt |
| Power Supply | AC220V 50-60 HZ 0.5KW |
| Machine Dimensions | 520*583*645 mm |
| Machine Weight | 53KG |
| Working Environments | Relative humidity : 20-90%, temperature : 0-40 °C |
