781Mini Spray Valves

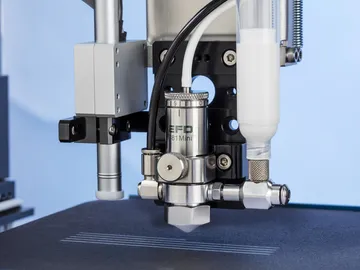

The 781Mini™ spray valve’s innovative design directs nozzle air pressure more consistently for exceptionally more uniform, narrower spray patterns than previously possible.

Overview

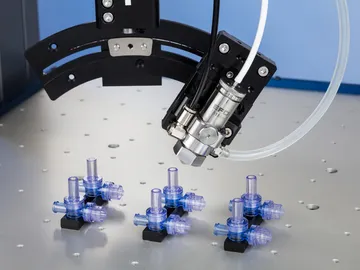

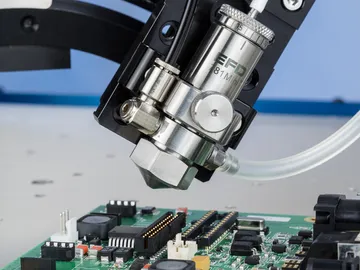

Using Low Volume Low Pressure (LVLP) technology, the 781Mini provides precision spray control with consistent spray patterns as narrow as 1 mm (0.04”) wide. With a 60% smaller form factor than conventional spray valves it’s possible to mount more valves per fixture plate for high volume applications. It’s also possible to install in tighter manufacturing environments or complex spaces. The 781Mini’s enhanced spray nozzle design improves spray pattern uniformity, providing better accuracy and edge definition. Its unique, patented (QR) quick release clasp reduces downtime to seconds when servicing the valve.

Valve Systems & Controllers

1

Engineered for the most demanding manufacturing environments

Nordson EFD valve systems are proven to provide precise, reliable fluid dispensing control for tens of millions of trouble-free cycles before maintenance is required.

The Complete Valve System The complete system includes a 781Mini spray valve, ValveMate™ 8040 or 7140 controller, and fluid reservoir. Achieve greater productivity with a benchtop automated dispensing system.

2

DATA SHEET

pdf(1)

781Mini Spray Valve
