Details
- Product Name : SMS27 Series
- Material : PET
- Adhesive : Acrylic
- All Colors : Red,Silver
Description

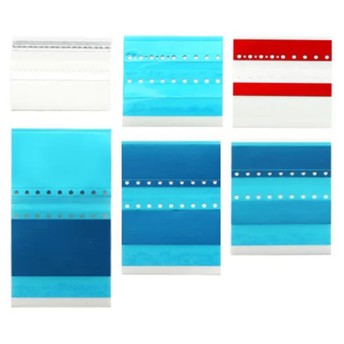

KHJ 27 Series Special Spice Tape for Fuji, applicable for all sizes of carrier tapes 4/8/12/16/24/32/44/56/72/88mm
KHJ 27 Series SMT Splice Tape used to joint two carrier tapes reels during SMT processing. It with super adhesion and made of there layers:tape,release liner and removalable PET.
Features And Benefits
1. Two rows holes alignment for precise jointing.
2. Machine detective,applicable for FUJI.
Application
Used to joint carrier tapes during SMT processing.
| P/N | Description of Goods | Quantity | Application |
| SMS-2704 | SMT super clip & splice 4mm | 500pcs/box | For 4mm carrier tape |
| SMS-2708 | SMT super clip & splice 8mm | 500pcs/box | For 8mm carrier tape |
| SMS-2712 | SMT clip & splice 12mm | 500pcs/box | For 12mm carrier tape |
| SMS-2716 | SMT clip & splice 16mm | 500pcs/box | For 16mm carrier tape |
| SMS-0724 | SMT clip & splice 24mm | 250pcs/box | For 24mm carrier tape |
SMS27120001C
Packing 500pcs/box
SMS27160001C
Packing 500pcs/box
SMS27240001C
Packing 250pcs/box
SMS2708C
Packing 250pcs/box
SMS2704
Packing 500pcs/box
SMS2712C
Packing 500pcs/box
SMS2716C
Packing 500pcs/box
SMS2724C
Packing 250pcs/box
Step 1
Tear off the release paper from splice tape.
Step 2
Put splicce tape onto the pins on fixture via its holes.

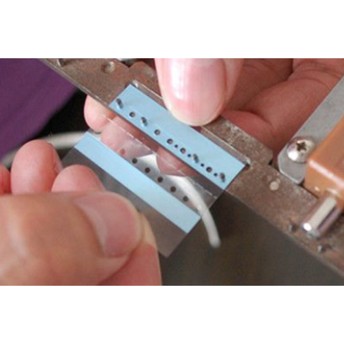

Step 3
Put pre-cut carrier tape onto the pins on fixture.

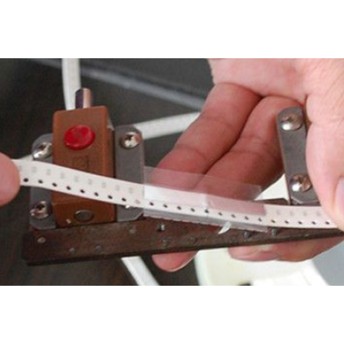

Step 4
Fold splice tape, and stick it on carrier tapes.
Step 5
Take off the jointed carrier tape from the fixture.

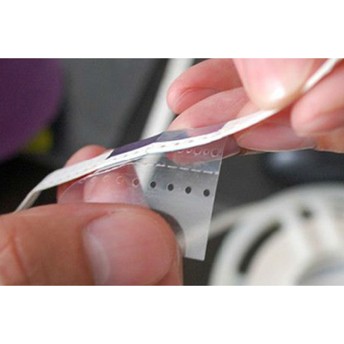

Step 6
Peel release film from splice tape.
Demonstration
Bottom side of the jointed carrier tapes.
