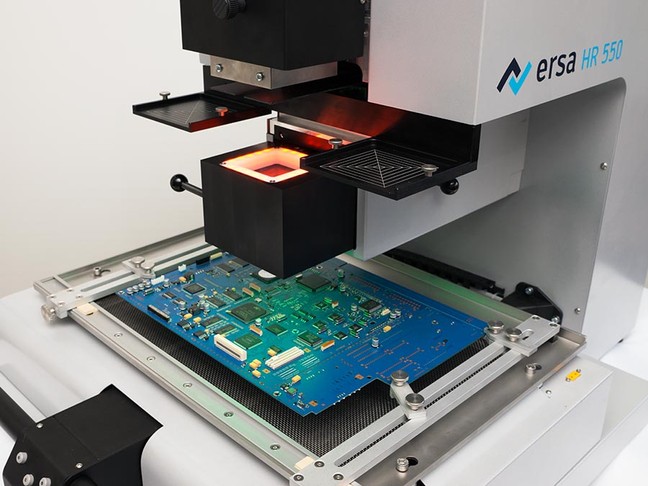

Guided rework with high-performance optical system and flexible heating technology
Thanks to guided processes, the HR 550 ensures safe rework on the basis of simple and convenient operation. Predicate: visually leading!
Technical highlights
- Highly efficient 1,800 W hybrid heating head
- Large-area IR bottom heating in 3 heating zones (2,400 W)
- Integrated vacuum pipette for component removal and placement
- Highly accurate placement with integrated force sensor
- Enhanced Visual Assistant (EVA)
- Computer aided component placement
- Process control and documentation via software HRSoft 2
- Suitable for the use of the Dip&Print Station
Specifications

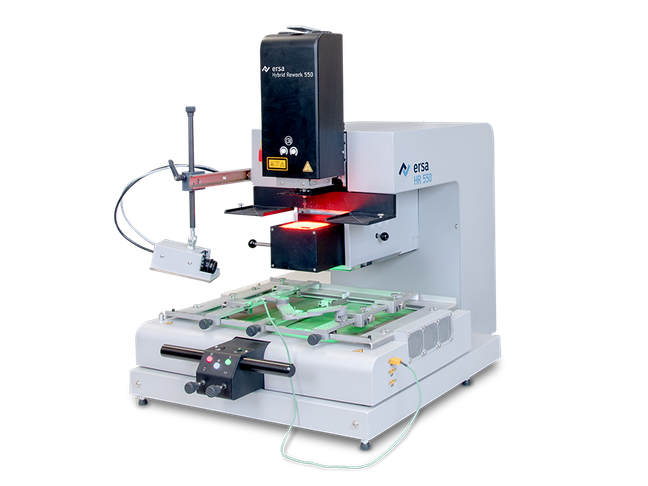

Ersa HR 550
Technical data
- Dimensions (W x D x H) in mm: 573 x 765 x 545/747 (heating head down/up)
- Weight in kg: 76
- Antistatic Design (y/n): yes
- Power Rating in W: 4.200
- Nominal voltage in V AC: 230
- Upper heating: Hybrid emitter (900 + 900 W), 70 x 70 mm
- Lower heating: IR emitter (3 x 800 W), 390 x 270 mm
- PCB size in mm: up to 400 x 300 mm (+x) up to 520 x 360 mm (+x) (0HR550L)
- Component size in mm: from 01005 to 70 x 70
- Operation: Windows-PC
- Test symbol: CE
- Option: Reflow process camera: 2,3 MP, CMOS GigE color camera, 25 mm focal length, illumination 2x LED, adjustable
