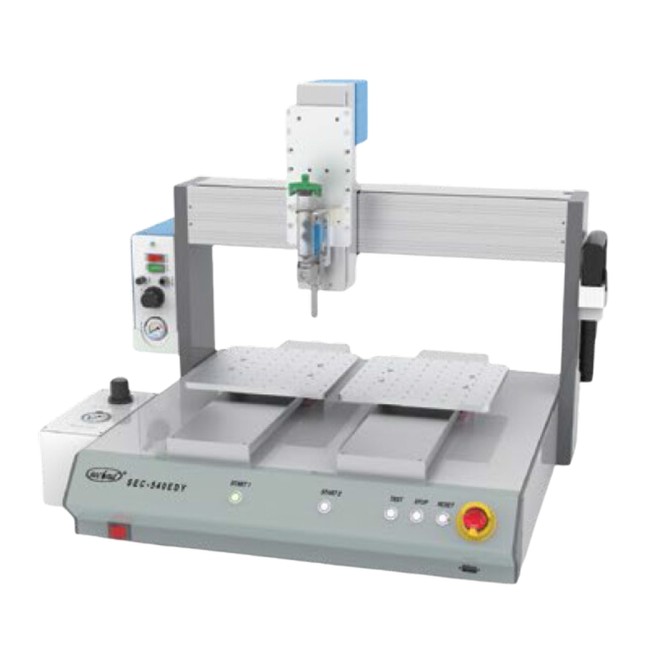

Automated desktop atomize coating machine with dual working desk
SEC-540EDY
Applications
- PCB/ECU, PCBA electronic parts
- Notebook shell bonding
- LCD glass substrate packaging
- Battery packaging
- LCD Quantitative liquid filling
- Auto parts coating
Features
1. Dual-dispensing desks
It can work in a left and right rotating work cycle, saving the time of picking and unloading products which improving production efficiency
2. 30CC precision coating nozzle
3. Each desk has working range of 220x220x100mm (XYZ)
4. Precision stepper motor and belt
XY axis equips with precision stepper motor and belt. The Z axis works with lead-screw rod for heavy-duty performance and heavier payload
Technical Specification
| Model | SEC-540EDY |
| Working Range | 500(X)*400(Y1)*400(Y2)*100(Z)mm |
| Traveling Speed | 500mm/sec(XY) / 200mm/sec(Z) |
| Resolution | 0.01 mm |
| Repeat Accuracy | ±0.025 mm |
| Operating System | LCD Panel, Handheld Programmer |
| Transporting System | Stepper motor + belt |
| Program Storage Capacity | 999 parameter files (65535 points per file) |
| Dispensing Mode | 4-axis : point-to-point, continuous line, arc, 3D curve, etc. |
| Power Supply | AC220V 50-60HZ 0.8KW |
| Machine Dimension | 720(L) * 786(W) * 685(H) mm |
| Machine Weight | 80 KG (est.) |
| Working Environment | Humidity : 20-90%, temperature : 0-40 °C |
