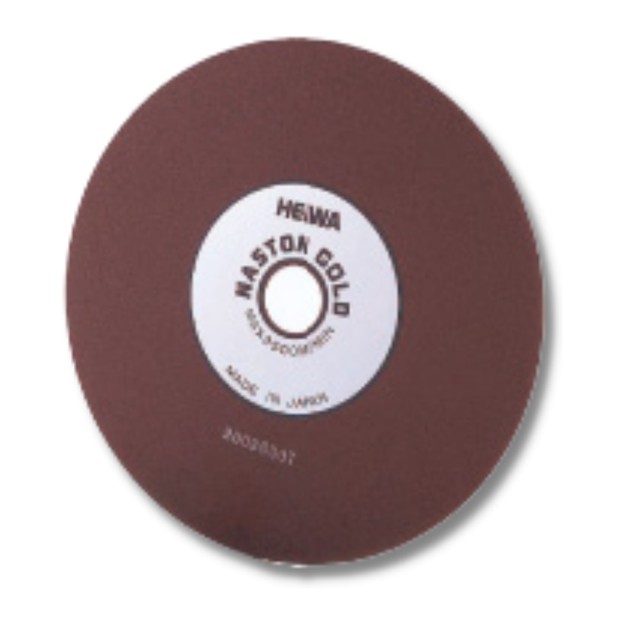

NASTON GOLD
Developed for difficult to cut materials that ordinary blades and cutting wheels cannot cut.
Exhibits its capabilities in the cutting of hard and brittle materials, such as cementer carbide and ceramics, hard glass, and sapphire glass, as well as materials that are difficult to cut such as tungsten, ferrite, and sendust. Retaining its soft sharpness to the end, it reduces chipping and improves the processing quality. Please be sure to consult us when you are having problems with your cutting.
| Parts No. | Size (mm) | Code No. | Application |
|---|---|---|---|
| O.D. x T x I.D. | |||
| TC−1 (#140) | 75 x 0.5 x 6.0 | TC1−07505 | Cemented carbide Ferrite Tungsten Other magnetic materials |
| 90 x 0.5 x 10.0 | TC1−09005 | ||
| 150 x 0.5 x 25.4 | TC1−15005 | ||
| 180 x 0.6 x 25.4 | TC1−18006 | ||
| 205 x 0.7 x 25.4 | TC1−20507 | ||
| 230 x 0.8 x 25.4 | TC1−23008 | ||
| 255 x 1.0 x 31.75 | TC1−25510 | ||
| TC−2 (#180) | 150 x 0.5 x 25.4 | TC2−15005 | Ceramics Hard glass Quartz/crystals etc. |
| 180 x 0.6 x 25.4 | TC2−18006 | ||
| 205 x 0.7 x 25.4 | TC2−20507 | ||
| 230 x 0.8 x 25.4 | TC2−23008 | ||
| 255 x 1.0 x 31.75 | TC2−25510 | ||
| TC−0 | 150 x 0.5 x 25.4 | TC0−15005 | Multipurpose ultra−hard materials |
| 205 x 0.7 x 25.4 | TC0−20507 |
