Details
- Product Name : SMS03 series
- Material : PET
- Adhesive : Acrylic
- Size : 8mm,12mm,16mm,24mm,32mm,44mm,56mm,72mm,88mm
- Color : yellow,black,blue,green,pink
Description
Universal 03 series SMT single splice tape used for all specifications (8/12mm/16mm/24mm/32/44/56/72/88mm)of carrier tape
03series single splice tape is used for jointing carrier tapes in the SMT process. It is made of one tapes and release paper with superior adhesion.
Features And Benefits
1. Pcs or reel packing are available.
2. Can be used with splice clips reliable jointing. It's suitable for Siemens and Fuji machine.
Application
Used for jointing carrier tapes in the SMT process and Solving the connection problem of the carrier tape.
Storage Condition
- Temperature 20 ํC-30 ํC
- Ralative Humidity(RH) 45%-65%
| P/N | Description of Goods | Quantity | Application |
| SMS-0308 | SMT single splice tape 8mm 4pcs/card yellow tape 4.8*45mm*2 | 4000pcs/box | for 8mm carrier tape |
| SMS-0312 | SMT single splice tape 12mm 4pcs/card yellow tape 7*45mm*1 | 4000pcs/box | for 12mm carrier tape |
| SMS-0316 | SMT single splice tape 16mm 4pcs/card yellow tape 9.5*45mm*2 | 4000pcs/box | for 16mm carrier tape |
| SMS-0324 | SMT single splice tape 24mm 4pcs/card yellow tape 15*45mm*2 | 2000pcs/box | for 24mm carrier tape |
z-z145327143182.jpg)
Packing 4000pcs/box

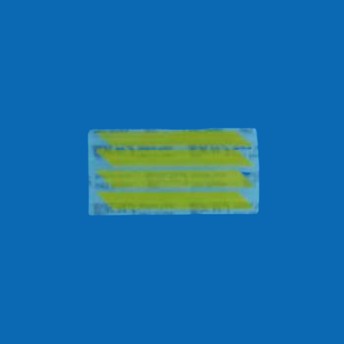

z-z1657487148031.jpg)
Packing 4000pcs/box

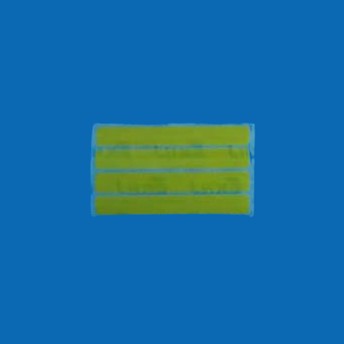

z-z1308264732360.jpg)
Packing 4000pcs/box

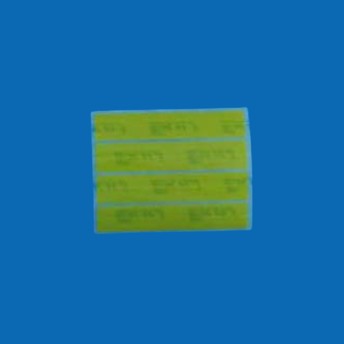

z-z448035838825.jpg)
Packing 4000pcs/box
Step 1
Put splice clip into splice tool.
Step 2
Put one pre-cut reel into splice tool.
Step 3
Put another pre-cut reel into splice tool.
Step 4
Clench the splice tool.
Step 5
Peel off the paper liner.
Step 6
Black strip in line with the edge of the reel to stick splice tape.
Step 7
Peel off the paper liner.
