Details
- Product Name : SMS25 series
- Material : PET
- Adhesive : Acrylic

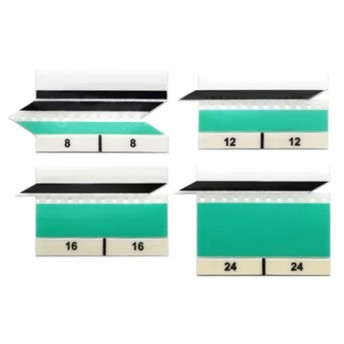

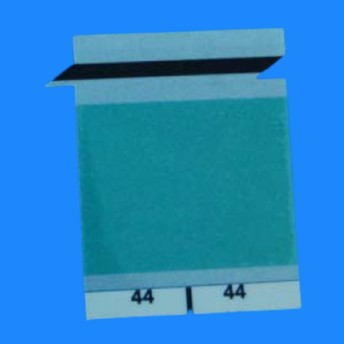

- Size : 8mm,12mm,16mm,24mm,32mm,44mm,56mm,72mm,88mm
- Color : black,green
- Peeling-off Force : (N/25mm) By Angle of 180 Degree≥15
Description
KHJ 25 Series Special Spice Tape for Panasonic, applicable for all sizes of carrier tapes 8/12/16/24/32/44/56/72/88mm
KHJ 25 Series SMT Splice Tape used to joint two carrier tapes reels during SMT processing. It with super adhesion and made of there layers:tape,release liner and removalable PET.
Features And Benefits
1. Guide alignment design,easy to operate with no need of splcing jig.
2. Longer than regular tapes,3 tapes structure for a more realiable splicing.
3. Color detective,applicable for Panasonic.
Application
- Used to joint carrier tapes during SMT processing.
- Storage condition
- Temperature: 20℃-30℃
- Ralative Humidity(RH): 45%-65%
| P/N | Description of Goods | Quantity | Application |
| SMS-2208 SMS-2408 SMS-2508 | SMT Special Splice Tape | 500pcs/box | for 8mm carrier tape |
| SMS-2212 SMS-2412 SMS-2512 | SMT Special Splice Tape | 500pcs/box | for 12mm carrier tape |

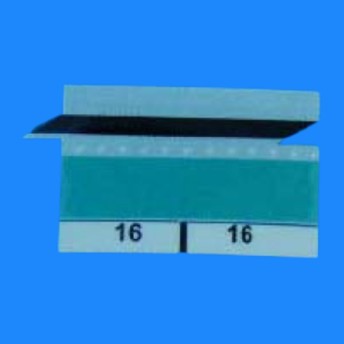

| SMS-2216 SMS-2416 SMS-2516 | SMT Special Splice Tape | 500pcs/box | for 16mm and above carrier tape |

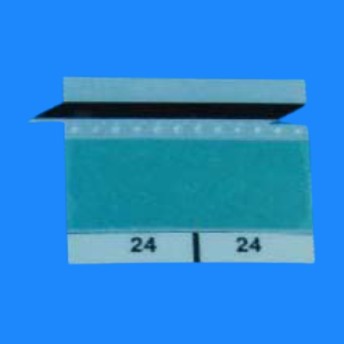

| SMS-2224 SMS-2424 SMS-2524 | SMT Special Splice Tape | 250pcs/box | for 24mm carrier tape |
Packing : 500pcs/box
Packing : 250pcs/box
Packing : 500pcs/box
Packing : 250pcs/box
Packing : 250pcs/box
Packing 250pcs/box
Step 1

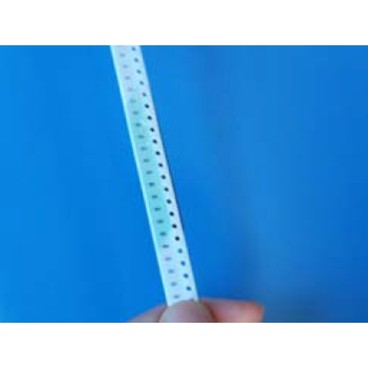

Put the pre-cut reel on the splice tape.
Step 2

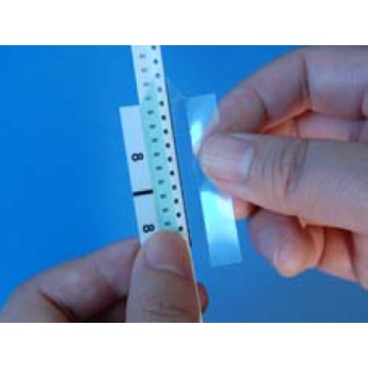

Fold down the splice on the connecting reel.
Step 3

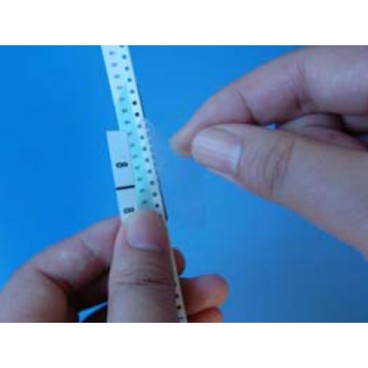

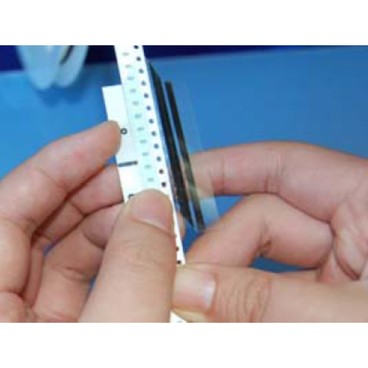

Take off the plastic Part.
Step 4

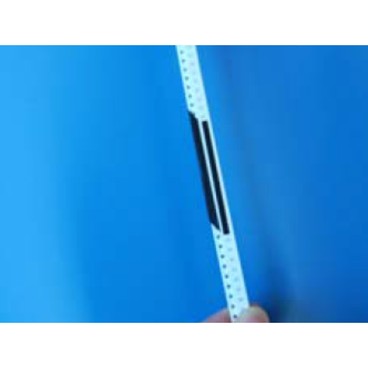

Discard the plastic Part of the splice.
